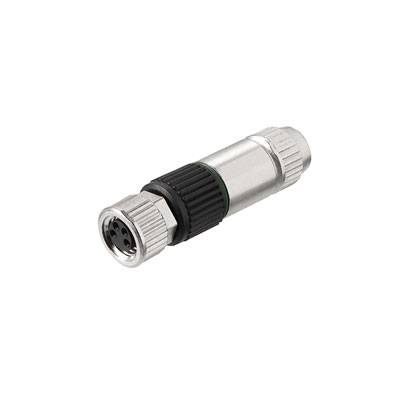

Connector with metal housing, cylindrical design, 5-pin socket, suitable for industrial applications.

Product type

Sensor/actuator connector

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

M8 socket, straight

Connection side B

Customisable

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Sensor/Actuator plug connector socket

SAIB-4-IDC-M8 small

Technical specifications

Packaging type: Piece

Type: SAIB-4-IDC-M8 SMALL

Product type: Sensor/actuator connector

Connector type: Socket, straight

Connector standard: Sensor connector

Connection side A: M8 socket, straight

Connection side B: Customisable

No. of pins: 4

Nominal voltage: 32 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.34 mm²

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: Cut & Clip

Thread type connection side: M8

Thread type (wiring and installation): M8

Contact material: Tin plated

Contact surface: Tin plated

max. cross section: 0.34 mm²

: IP67

Min. temperature: -25 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 1784050001

Content: 1 pc(s)

Cable Ø (max.): 5.4 mm

Cable Ø up to: 3.2 mm

Cable Ø range: 3.2 - 5.4 mm

RoHS-compliant: Yes

: Other

: 32 V

: FALSE

: Bus

: Brass

: Other

: Insulation displacement connection

: Tin

: 3

: Straight

: 0.14-0.14 mm²

: 0.14-0.34 mm²

: IP67

: 4 A

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection side B

Type

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

Thread type connection side

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M12, bush, 90°

Item no:195552

Customisable

SAIBW-5/9-(KV)

4 A

M12 socket, right angle

Socket, right angle

125 V

M12

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M12, Female socket, straight

Item no:195555

Customisable

SAIB-5/9-(KV)

4 A

M12 socket, straight

Socket, straight

125 V

M12

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M8, Female socket, straight

Item no:195584

Customisable

SAIBM-M8-3P-(IF)

4 A

M8 socket, straight

Socket, straight

60 V

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M8, Female socket, straight

Item no:195586

Customisable

SAIBM-M8-4P-(IF)

4 A

M8 socket, straight

Socket, straight

30 V

Weidmüller 1052050000 Sensor/actuator built-in connector M16 Socket, built-in No. of pins (RJ): 5 1 pc(s)

Item no:195970

M16 socket, built-in

SAIE-M12B-5-1.5U-FP-M16

NaN A

Cable, open end

Socket, built-in

60 V

M16

Weidmüller 1078720000 Sensor/actuator built-in connector M8 Plug, mount No. of pins (RJ): 4 1 pc(s)

Item no:199322

M8 plug, built-in

SAIE-M8S-4-0.5U-FP-M8

4 A

Cable, open end

Plug, mount

30 V

Weidmüller 1078730000 Sensor/actuator built-in connector M8 Plug, mount No. of pins (RJ): 3 1 pc(s)

Item no:199324

M8 plug, built-in

SAIE-M8S-3-0.5U-FP-M8

4 A

Cable, open end

Plug, mount

60 V

Weidmüller 1117970000 Sensor/actuator connector M16 Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

Item no:200619

SAIS-M16-4/9

6 A

Plug, straight

250 V

M16

Weidmüller 1117990000 Sensor/actuator connector M16 Plug, straight No. of pins (RJ): 5 1 pc(s)

Item no:200620

SAIS-M16-5/9

6 A

Plug, straight

250 V

M16

Weidmüller 1118010000 Sensor/actuator connector M16 Plug, straight No. of pins (RJ): 7 1 pc(s) Piece

Item no:200621

SAIS-M16-7/9

5 A

Plug, straight

125 V

M16

Documents & Downloads

Datasheet

Datasheet 203496 Weidmüller 1784050001 Sensor/actuator connector M8 Socket, straight No. of pins (RJ): 4 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 203496 Weidmüller 1784050001 Sensor/actuator connector M8 Socket, straight No. of pins (RJ): 4 1 pc(s) Piece

Description

Sensor/Actuator plug connector socket. M8 socket, straight. Often in today's world, individual cable lengths are required. In order to meet this requirement, Weidmüller offers a broad portfolio of connectors for free assembly. Plugs and sockets for free packing for M8, M12, M16 and 7/8" connectors are very robust and, for example, for mechanical engineering. The M8 circular connector are particularly suitable for applications with limited space. The insulation displacement terminal connection is characterized by a fast and easy to assemble. Due to this technology the head, without stripping and crimping, directly into the plug is inserted. Furthermore, he has a high level of functional safety.

This text is machine translated.
