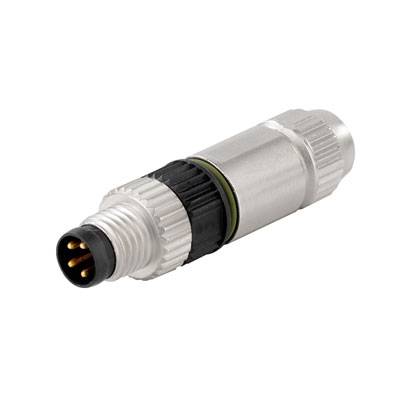

Weidmüller 1784060001 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
Customisable
Datasheet (PDF)
Highlights & Details
Sensor/Actuator plug connector plug
- SAIS-4-IDC M 8 small
Technical specifications
- Type
SAIS-4-IDC M8 SMALL
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
Customisable
- No. of pins
4
- Nominal voltage
32 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Cut & Clip
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
IP67
- Features
Industrial-grade
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1784060001
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
32 V
FALSE
Pin
Brass
Other
Insulation displacement connection
Tin
3
Straight
0.14-0.14 mm²
0.14-0.34 mm²
IP67
4 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203497 Weidmüller 1784060001 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203497 Weidmüller 1784060001 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 4 1 pc(s)
Description
Sensor/Actuator plug connector plug. M8, pin, straight. Often in today's world, individual cable lengths are required. In order to meet this requirement, Weidmüller offers a broad portfolio of connectors for free assembly. Plugs and sockets for free packing for M8, M12, M16 and 7/8" connectors are very robust and, for example, for mechanical engineering. The M8 circular connector are particularly suitable for applications with limited space. The insulation displacement terminal connection is characterized by a fast and easy to assemble. Due to this technology the head, without stripping and crimping, directly into the plug is inserted. Furthermore, he has a high level of functional safety.
