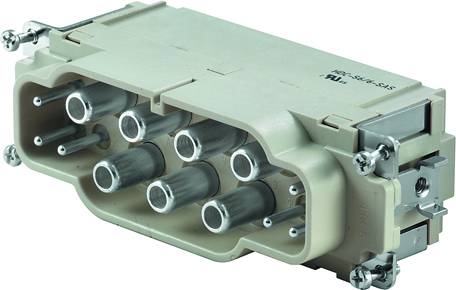

Weidmüller 1790030000 Pin inset RockStar® HDC 48A 6 + 6 + PE Axial screw terminal 10 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Axial screw terminal
Series
RockStar® HDC 48A
Features
copper-plated
Total no. of pins
6 + 6 + PE
Datasheet (PDF)
Technical specifications
- Net weight: 286 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 47.8 mm
- Depth: 111 mm
- Length Socket: 111 mm
- Size: 8
- Series: MixMate
- Rated voltage (DIN EN 61984): 690 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 8 kV
- Rated current (DIN EN 61984): 100 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 1 mΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 2
- wire cross-section AWG (PE), min.: AWG 6
- Wire stripping length Rated connection: 13 mm
- Wire stripping length PE connection: 8 mm
- Tightening torque max. 8 Nm
- Tightening torque min. PE connection: 6 Nm
- Surface: Silver passivated
- Material: Copper alloy
- Height Plug: 47.8 mm
- Number of power contacts: 6
- Product type
Pin inset
- Series
RockStar® HDC 48A
- Features
copper-plated
- Connection
Axial screw terminal
- Total no. of pins
6 + 6 + PE
- Core cross section (max.)
35 mm²
- Number of pins
6
6
- Core cross section (min.)
16 mm²
- Core cross section power contact (max.)
35 mm²
- Core cross section power contact (min.)
16 mm²
- Core cross section controller contact (max.)
2.5 mm²
- Core cross section controller contact (min.)
0.5 mm²
- Content
10 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 194506 Weidmüller 1790030000 Pin inset RockStar® HDC 48A 6 + 6 + PE Axial screw terminal 10 pc(s)
User & Safety Instructions
User & Safety Instructions 194506 Weidmüller 1790030000 Pin inset RockStar® HDC 48A 6 + 6 + PE Axial screw terminal 10 pc(s)
Description
Use. HDC-, pin, 690 V, 100 A number of poles: 12, axial screw terminal, screw terminals, size: 8. The MixMate series features, this in a connector the simultaneous transmission of high rated currents and voltages but also signals is possible. It can be used for printed circuit mounting the axial screw technology Axial screw terminal, TOP-connection technology.
