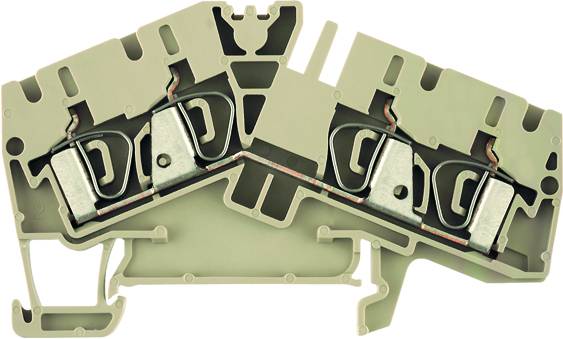

Weidmüller 1806980000-100 Serial continuity Pull spring Dark beige 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Highlights & Details
Continuity series terminal
- ZDU 4-2/4AN
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
+ test option
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Dark beige
- Manufacturer part #
1806980000-100
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
ZDU 4-2/4AN
- Dim
(L x W x H) 75.1 x 6.1 x 45.5 mm
- Width
6.1 mm
- Height
45.5 mm
- Length
75.1 mm
- RoHS-compliant
Yes
- Weight
12.57 g
- Type
ZDU 4-2/4
DIN rail (top hat rail) 35 mm
Beige
6.1
75.1 mm
45.5 mm
800 V
-50-120 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
4
FALSE
0.5-6 mm²
0.5-4 mm²
0.5-4 mm²
Thermoplastic
32 A
TRUE
Documents & Downloads
Datasheet
Datasheet 283804 Weidmüller 1806980000-100 Serial continuity Pull spring Dark beige 100 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 283804 Weidmüller 1806980000-100 Serial continuity Pull spring Dark beige 100 pc(s) Piece
Description
Continuity series terminal. Z-Series terminal with spring-cage connection, nominal cross section: 4 mm², spring-cage connection, Wemid, dark beige. Terminal blocks in spring technology, the Z-series, are specifically tailored to customer requirements: Low available space, Spacious marking surfaces, integrated test point, cross-connectivity within the Z-series and to other Weidmüller terminal block ranges. The Z-series terminals have a large clamping range and up to two cross-connection channels. With standard plug-in cross-connectors, potentials can be distributed over any number of terminals.
