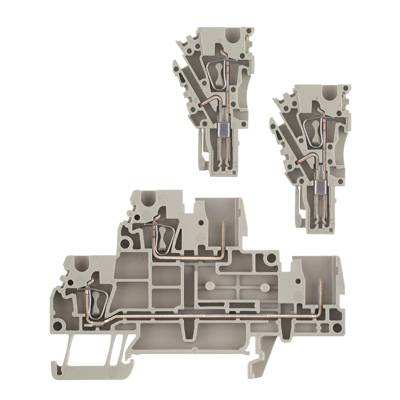

Weidmüller 1815150000 Dual port terminal Pull spring Dark beige 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dual port terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
Double-level terminal block
- ZDT 2.5/2
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Dual port terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
2
- Factory colour
Dark beige
- Manufacturer part #
1815150000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZDT 2.5/2
- Dim
(L x W x H) 80.5 x 5.1 x 52 mm
- Width
5.1 mm
- Height
52 mm
- Length
80.5 mm
- RoHS-compliant
Yes
- Weight
9.67 g
- Type
Zen 2.5/2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 358939 Weidmüller 1815150000 Dual port terminal Pull spring Dark beige 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 358939 Weidmüller 1815150000 Dual port terminal Pull spring Dark beige 50 pc(s) Piece
Description
Double-level terminal block. Z-Series terminal with 2 Connectors, rated cross-section: 2.5 mm², spring-cage connection, Wemid, dark beige. A terminal strip for the function unit, a plug-in connectors for cable harness production. In Final Assembly are only two units zusammenzurasten-like connectors. And that's it! Whether in the application areas railway technology, mechanical engineering or shipbuilding - all serves the Z-series from weidmüller optimally. Because it is easy, fast and secure in the connection without any problem in the handling and practical in the system. Modular and flexible connection techniques are particularly in demand, where all function units pre-fabricated or replaced.
