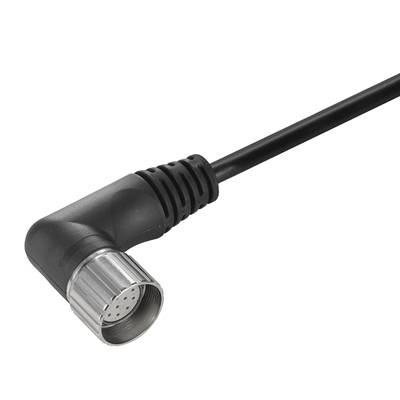

Weidmüller 1818140500 Sensor/actuator connector (pre-fab) M23 Socket, right angle 5.00 m No. of pins (RJ): 19 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, right angle
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M23 socket, right angle
Datasheet (PDF)
Highlights & Details
Sensor/actuator cable, open on one side
- SAIB-M 23-19 P-to -5.0 M
Technical specifications
- Type
SAIB-M23-19P-AN-5,0M
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M23 socket, right angle
- No. of pins
19
- Cable length
5.00 m
- Jacket material
PUR
- Nominal voltage
150 V
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Connection
Open end cable
- Thread type connection side
M23
- Cable colour
Black
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Seal type
Screw-on
- Manufacturer part #
1818140500
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cable diameter (details)
9.10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203914 Weidmüller 1818140500 Sensor/actuator connector (pre-fab) M23 Socket, right angle 5.00 m No. of pins (RJ): 19 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203914 Weidmüller 1818140500 Sensor/actuator connector (pre-fab) M23 Socket, right angle 5.00 m No. of pins (RJ): 19 1 pc(s)
Description
Sensor/actuator cable, open on one side. Sensor/actuator cables are used for the wiring of sensors and actuators, and to transfer data or performance in different applications. The molded cable offers a factory connected and tested the connection of the connector to the cable. The lines can be exposed to a wide range of conditions, such as: moisture, dust, heat, cold, shock or vibration. The M23 lines offer: High plug-in frequency, high power portability and a high contact density at the same time small dimensions.
