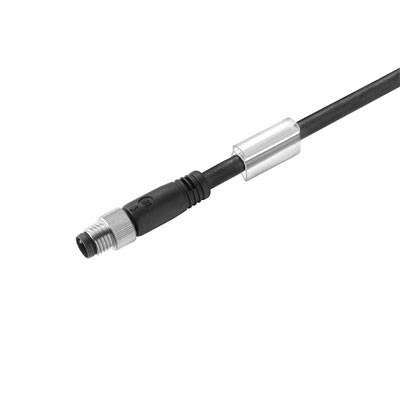

Weidmüller 1824590150 Sensor/actuator connector (pre-fab) M8 Plug, straight 1.50 m No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M8 plug, straight
Datasheet (PDF)
Highlights & Details
Sensor/actuator cable
- SAIL-M8G-3-1.5 U
Technical specifications
- Type
SAIL-M8G-3-1.5U
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M8 plug, straight
- No. of pins
3
- Cable length
1.50 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Open end cable
- Thread type connection side
M8
- Cable colour
Black
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
1824590150
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cable diameter (details)
4.10
TRUE
Multi-core
60 V
1.5 m
FALSE
3
-25-80 °C
-40-80 °C
0 mΩ
Gold
IP66
M8
M8
FALSE
4 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203990 Weidmüller 1824590150 Sensor/actuator connector (pre-fab) M8 Plug, straight 1.50 m No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203990 Weidmüller 1824590150 Sensor/actuator connector (pre-fab) M8 Plug, straight 1.50 m No. of pins (RJ): 3 1 pc(s)
Description
Sensor/actuator cable. Open on one side, M8, pin, straight, LED: No, PUR, halogens: No, poles: 3, shielded: No, 1.5 m. Sensor/actuator cables are used for the wiring of sensors and actuators, and to transfer data or performance in different applications. The molded cable offers a factory connected and tested the connection of the connector to the cable. The lines can be exposed to a wide range of conditions, such as: moisture, dust, heat, cold, shock or vibration. Exactly at this point, our developers and a wide variety of different M8 and M12 sensor/actuator cables designed that also make sure exactly what you need for your application.
