Weidmüller 1826200000 Fuse serial terminal Pull spring Black 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
Fuse terminal block
- ZSI 2.5-2/2X2AN/G25
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Fuse serial terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Black
- Manufacturer part #
1826200000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
ZSI 2.5-2/2X2AN/G25
- Dim
(L x W x H) 68 x 12.2 x 55 mm
- Width
12.2 mm
- Height
55 mm
- Length
68 mm
- RoHS-compliant
Yes
- Weight
27.7 g
- Connector colour
Black
- Insulation material
PA 6.6
- Type
ZSI 2.5-2/2 X 2 ON/G25
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 359325 Weidmüller 1826200000 Fuse serial terminal Pull spring Black 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 359325 Weidmüller 1826200000 Fuse serial terminal Pull spring Black 20 pc(s) Piece
Description

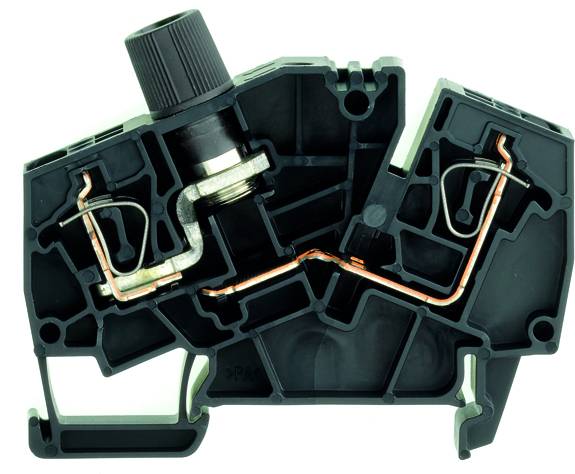

Fuse terminal block. Z-series terminal fuse terminal block, rated cross-section: 2.5 mm², spring-cage connection, PA 66/6, black, direct mounting
