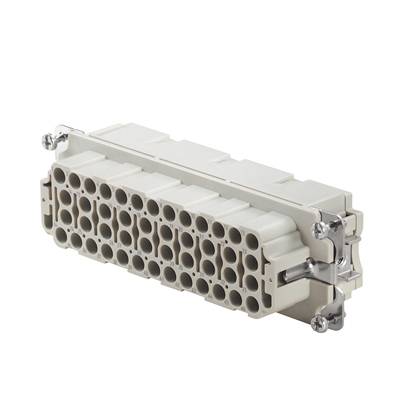

Weidmüller 1826780000 Socket inset RockStar® HDC HEE 46 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Crimp
Series
RockStar® HDC HEE
Features
copper-plated
Total no. of pins
46 + PE
Datasheet (PDF)
Highlights & Details
Socket insert
- HDC HEE 46 FC
Technical specifications
- Net weight: 88 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 36 mm
- Depth: 111 mm
- Height Socket: 36 mm
- Length Socket: 111 mm
- Size: 8
- Series: HEE
- Rated voltage (DIN EN 61984): 500 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- plug-in cycles Au: ≥ 500
- Connection type PE: Screw connection
- cross-section AWG (PE), max.: AWG 12
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 7.5 mm
- PE connection: 10 mm
- Tightening torque max. PE connection: 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Product type
Socket inset
- Series
RockStar® HDC HEE
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
46 + PE
- Core cross section (max.)
4 mm²
- Number of pins
46
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
34
36 mm
111 mm
500 V
46
Bus
-40-125 °C
V0
6 kV
Crimp connection
Silver
3
0.5-4 mm²
0.5-4 mm²
0.5-4 mm²
0.5-4 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204070 Weidmüller 1826780000 Socket inset RockStar® HDC HEE 46 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204070 Weidmüller 1826780000 Socket inset RockStar® HDC HEE 46 + PE Crimp 1 pc(s)
Description
Socket insert. HDC-insert, female, 500 V, 16 A, number of poles: 46, crimp connection, size: 8. The HEE series has a high contact density and is based on the proven U-inserts. The Conductor Connection level is designed as a crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 46, rated current 16 A, rated voltage 500 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
