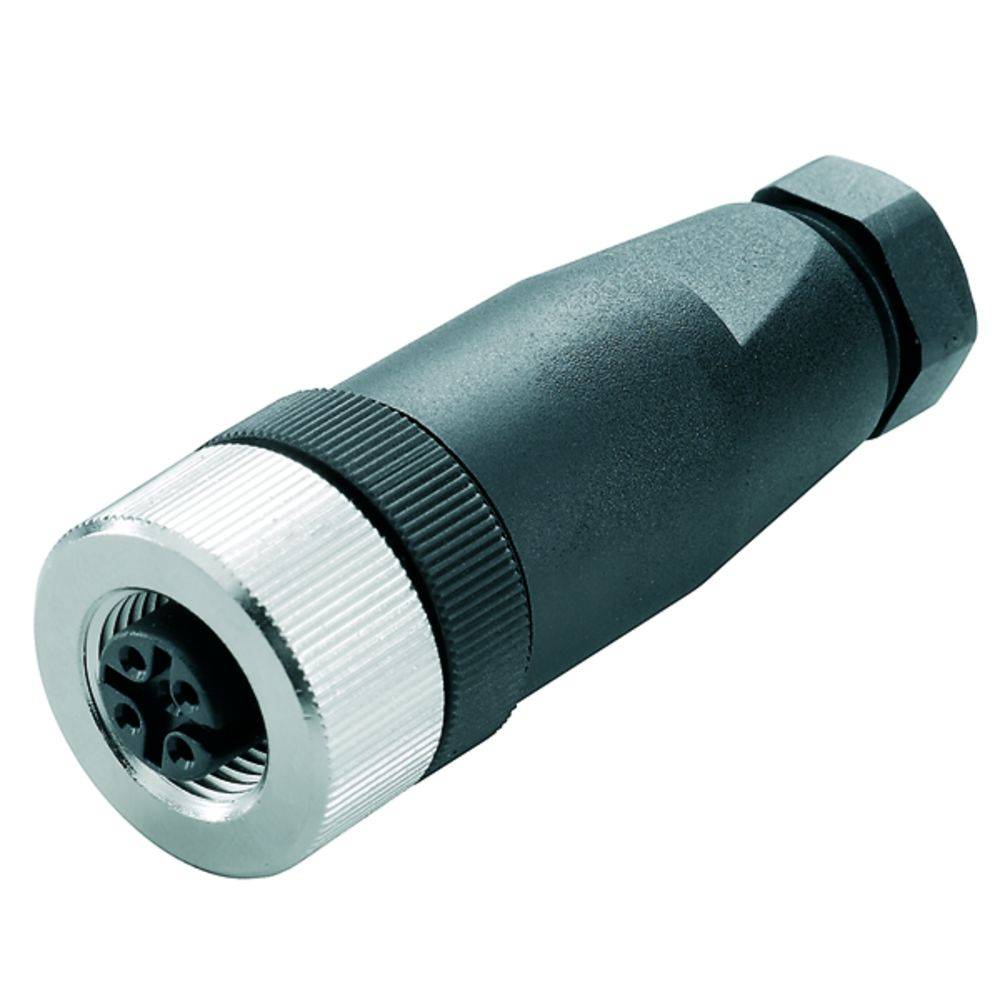

Weidmüller 1836960000 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 8 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
Customisable
Datasheet (PDF)
Highlights & Details
Sensor/Actuator plug connector socket
- SAIB -8/9
Technical specifications
- Packaging type
Piece
- Type
SAIB-8/9
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
Customisable
- No. of pins
8
- Nominal voltage
60 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connection
Screw terminal
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1836960000
- Content
1 pc(s)
- RoHS-compliant
Yes
Gland nut
60 V
FALSE
Bus
Plastic
Plastic-coated
Screw connection
Gold
3
Straight
0.14-0.14 mm²
0.14-0.5 mm²
IP67
2 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204130 Weidmüller 1836960000 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 8 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 204130 Weidmüller 1836960000 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 8 1 pc(s) Piece
Description
Sensor/Actuator plug connector socket. M12 connector, female, straight. Often in today's world, individual cable lengths are required. In order to meet this requirement, Weidmüller offers a broad portfolio of connectors for free assembly. Plugs and sockets for free packing for M8, M12, M16 and 7/8" connectors are very robust and, for example, for mechanical engineering. The M12 connectors are available 4 different connection technologies, from which you can select. The screw connection is characterised by its versatile usability. With this technology, the conductor, optionally with wire-end sleeves, wire-in connection elements and connected by a screw fixed. It is the classical and most cost-effective connection technology, which also makes it possible to multi-conductor connections.
