Buy Weidmüller 1856130000 Sensor/actuator built-in connector M8 Socket, built-in No. of pins (RJ): 3 1 pc(s)

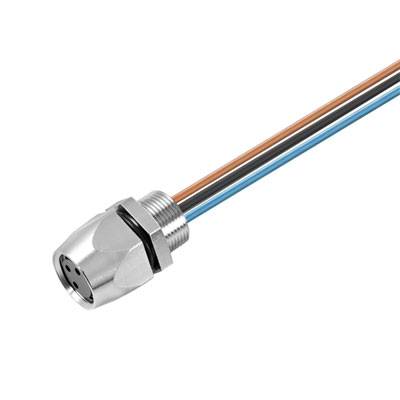

A silver connector plug with three coloured cables (brown, blue, black) protrudes. Primarily used for electrical connection.

Product type

Sensor/actuator built-in connector

Connector type

Socket, built-in

Connection side A

Cable, open end

Connection side B

M8 socket, built-in

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Installation plug

SAIE-M8B -3-0.5U-FP-M8

Technical specifications

Type: SAIE-M8B-3-0.5U-FP-M8

Product type: Sensor/actuator built-in connector

Connector type: Socket, built-in

Connection side A: Cable, open end

Connection side B: M8 socket, built-in

No. of pins: 3

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.25 mm²

Connection: Open end cable

Thread type connection side: M8

: IP67

Min. temperature: -30 °C

Max. temperature: +90 °C

Seal type: Screw-on

Manufacturer part #: 1856130000

Content: 1 pc(s)

RoHS-compliant: Yes

: Polyvinyl chloride (PVC)

: 60 V

: 0.5 m

: 3

: Brass

: Nickel-plated

: -30-90 °C

: Gold

: IP67

: 4 A

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection side B

Type

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

Thread type connection side

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M12, bush, 90°

Item no:195552

Customisable

SAIBW-5/9-(KV)

4 A

M12 socket, right angle

Socket, right angle

125 V

M12

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M12, Female socket, straight

Item no:195555

Customisable

SAIB-5/9-(KV)

4 A

M12 socket, straight

Socket, straight

125 V

M12

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M8, Female socket, straight

Item no:195584

Customisable

SAIBM-M8-3P-(IF)

4 A

M8 socket, straight

Socket, straight

60 V

Sockets prefabricated to customer spec., Plugs prefabricated to customer spec., M8, Female socket, straight

Item no:195586

Customisable

SAIBM-M8-4P-(IF)

4 A

M8 socket, straight

Socket, straight

30 V

Weidmüller 1052050000 Sensor/actuator built-in connector M16 Socket, built-in No. of pins (RJ): 5 1 pc(s)

Item no:195970

M16 socket, built-in

SAIE-M12B-5-1.5U-FP-M16

NaN A

Cable, open end

Socket, built-in

60 V

M16

Weidmüller 1078720000 Sensor/actuator built-in connector M8 Plug, mount No. of pins (RJ): 4 1 pc(s)

Item no:199322

M8 plug, built-in

SAIE-M8S-4-0.5U-FP-M8

4 A

Cable, open end

Plug, mount

30 V

Weidmüller 1078730000 Sensor/actuator built-in connector M8 Plug, mount No. of pins (RJ): 3 1 pc(s)

Item no:199324

M8 plug, built-in

SAIE-M8S-3-0.5U-FP-M8

4 A

Cable, open end

Plug, mount

60 V

Weidmüller 1117970000 Sensor/actuator connector M16 Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

Item no:200619

SAIS-M16-4/9

6 A

Plug, straight

250 V

M16

Weidmüller 1117990000 Sensor/actuator connector M16 Plug, straight No. of pins (RJ): 5 1 pc(s)

Item no:200620

SAIS-M16-5/9

6 A

Plug, straight

250 V

M16

Weidmüller 1118010000 Sensor/actuator connector M16 Plug, straight No. of pins (RJ): 7 1 pc(s) Piece

Item no:200621

SAIS-M16-7/9

5 A

Plug, straight

125 V

M16

Documents & Downloads

Datasheet

Datasheet 204235 Weidmüller 1856130000 Sensor/actuator built-in connector M8 Socket, built-in No. of pins (RJ): 3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 204235 Weidmüller 1856130000 Sensor/actuator built-in connector M8 Socket, built-in No. of pins (RJ): 3 1 pc(s)

Description

Built-in plug. M8 socket, straight, M8, number of poles: 3, 0.5 m.
