Weidmüller 1873040000 Sensor/actuator built-in connector M5 Socket, built-in No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connection side A
Cable, open end
Connection side B
M5 socket, built-in
No. of pins
4
Datasheet (PDF)
Highlights & Details
Installation plug
- SAIE-M5B -4-0. 2U
Technical specifications
- Type
SAIE-M5B-4-0.2U
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connection side A
Cable, open end
- Connection side B
M5 socket, built-in
- No. of pins
4
- Nominal voltage
60 V
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Connector cross-section (max.)
0.14 mm²
- Connection
Open end cable
- Thread type connection side
M5
IP67
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Seal type
Screw-on
- Manufacturer part #
1873040000
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204385 Weidmüller 1873040000 Sensor/actuator built-in connector M5 Socket, built-in No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204385 Weidmüller 1873040000 Sensor/actuator built-in connector M5 Socket, built-in No. of pins (RJ): 4 1 pc(s)
Description

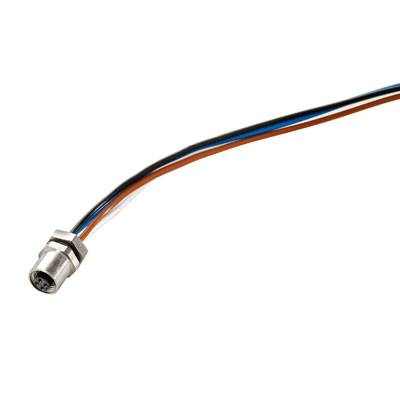

Built-in plug. M5, Socket, straight, M5, number of poles: 4, 0.2 m.
