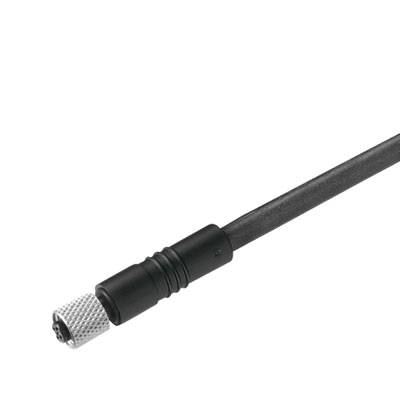

Weidmüller 1873250300 Sensor/actuator connector (pre-fab) M5 Socket, straight 3.00 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M5 socket, straight
Datasheet (PDF)
Highlights & Details
Assembled sensor/actuator cable
- SAIL-M5 BG-4P 3.0 U
Our service for you
Technical specifications
- Type
SAIL-M5BG-4P-3.0U
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M5 socket, straight
- No. of pins
4
- Cable length
3.00 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Open end cable
- Thread type connection side
M5
- Cable colour
Black
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
1873250300
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cable diameter (details)
4
Documents & Downloads
Datasheet
Datasheet 204410 Weidmüller 1873250300 Sensor/actuator connector (pre-fab) M5 Socket, straight 3.00 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204410 Weidmüller 1873250300 Sensor/actuator connector (pre-fab) M5 Socket, straight 3.00 m No. of pins (RJ): 4 1 pc(s)
Description
Assembled sensor/actuator cable. M5, Socket, straight, LED: No, poles: 4, 3 m. Sensor/actuator cables are used for the wiring of sensors and actuators, and to transfer data or performance in different applications. The molded cable offers a factory connected and tested the connection of the connector to the cable. The lines can be exposed to a wide range of conditions, such as: moisture, dust, heat, cold, shock or vibration.
