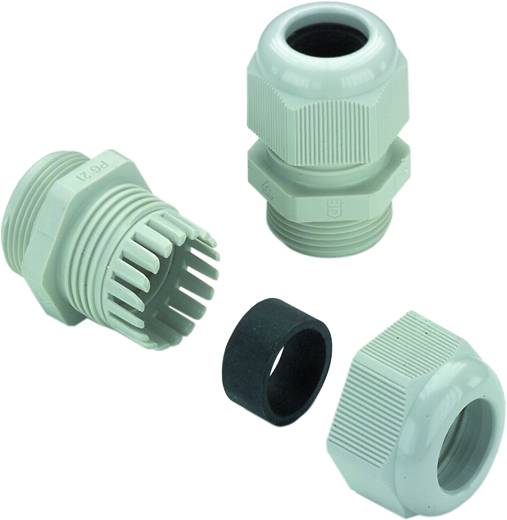

Weidmüller 1909690000-50 Cable gland M20 Polyamide Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20
Type
Metric
Material
Polyamide
Clamp Ø
6 mm
Datasheet (PDF)
Highlights & Details
Cable gland
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Sealing INSERT: NBR
- Nozzle torque, max. 6 Nm
- Nozzle torque, min.: 5 Nm
- Tightening torque: 3.5 Nm
- Product type
Cable gland
- Factory colour
Grey
- External thread
M20
- Torque
6 Nm
- Type
Metric
- Material
Polyamide
- Clamp Ø
6 mm
- Terminal Ø (max.)
12 mm
- Thread length
10 mm
- Length
39.5 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP67
- Spanner size
24 mm
- Weight
9.96 g
- Halogen-free
No
- Content
50 pc(s)
- Industrial packaging
Yes
- RoHS-compliant
Yes
- Manufacturer part #
1909690000-50
- Type
VG M20-K67 6-12
- UKCA
not relevant
