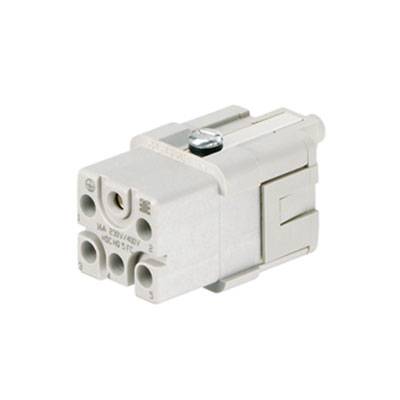

Weidmüller 1912460000 Socket inset RockStar® HDC HQ 5 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Crimp
Series
RockStar® HDC HQ
Features
copper-plated
Total no. of pins
5 + PE
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Socket insert
- HDC HQ 5FC
Technical specifications
- Net weight: 15 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 21 mm
- Height: 40.1 mm
- Depth: 21 mm
- Height Socket: 40.1 mm
- Length Socket: 21 mm
- Size: 1
- Series: HQ
- Rated voltage (DIN EN 61984): 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- plug-in cycles Au: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 14
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 7.5 mm
- PE connection: 10 mm
- Tightening torque max. PE connection: 0.55 Nm
- Tightening torque min. PE connection: 0.5 Nm
- Mounting screw: M 3
- Slotted blade size (PE connection): SD 0.6 x 3.5
- Product type
Socket inset
- Series
RockStar® HDC HQ
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
5 + PE
- Core cross section (max.)
4 mm²
- Number of pins
5
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
21
40.1 mm
21 mm
250 V
5
Bus
-40-125 °C
V0
6 kV
Crimp connection
Silver
3
0.5-4 mm²
0.5-2.5 mm²
0.5-2.5 mm²
0.5-4 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 254850 Weidmüller 1912460000 Socket inset RockStar® HDC HQ 5 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 254850 Weidmüller 1912460000 Socket inset RockStar® HDC HQ 5 + PE Crimp 1 pc(s)
Description
Socket insert. HDC-insert, female, 250 V, 16 A, number of poles: 5, crimp connection, size: 1. Small dimensions and yet large. The electrical characteristics speak for themselves. The proven U-crimp contacts can also be used here. Number of pins: 5 (+ PE), rated current 16 A, rated voltage 400 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
