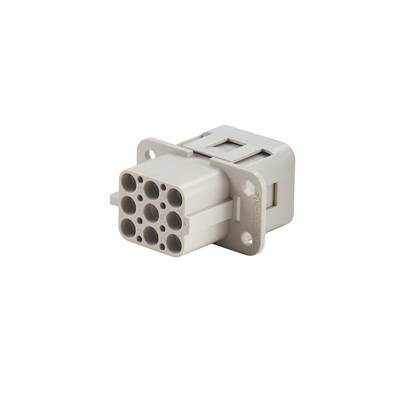

Weidmüller 1919980000 Socket inset RockStar® HDC HQ 8 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Crimp
Series
RockStar® HDC HQ
Features
copper-plated
Total no. of pins
8 + PE
Datasheet (PDF)
Highlights & Details
Socket insert
- HDC HQ 8 FC
Technical specifications
- Net weight: 17 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 22.4 mm
- Height: 38.5 mm
- Depth: 41.6 mm
- Height Socket: 38.5 mm
- Length Socket: 41.6 mm
- Size: HQ
- series: HQ
- rated voltage (DIN EN 61984): 500 V
- rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- plug-in cycles Au: ≥ 500
- Connection type PE: Crimp connection
- Wire cross-section AWG (PE), max.: AWG 12
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 7.5 mm
- Wire stripping length PE connection: 7.5 mm
- Product type
Socket inset
- Series
RockStar® HDC HQ
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
8 + PE
- Core cross section (max.)
4 mm²
- Number of pins
8
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
22.4
38.5 mm
41.6 mm
500 V
8
Bus
-40-125 °C
V0
6 kV
Crimp connection
Silver
3
0.5-4 mm²
0.5-4 mm²
0.5-4 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 254862 Weidmüller 1919980000 Socket inset RockStar® HDC HQ 8 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 254862 Weidmüller 1919980000 Socket inset RockStar® HDC HQ 8 + PE Crimp 1 pc(s)
Description
Socket insert. HDC-insert, female, 500 V, 16 A, number of poles: 8, crimp connection, Size: HQ. Small dimensions and yet large. The electrical characteristics speak for themselves. The proven U-crimp contacts can also be used here. Number of pins: 8 (+ PE), rated current 16 A, rated voltage 500 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
