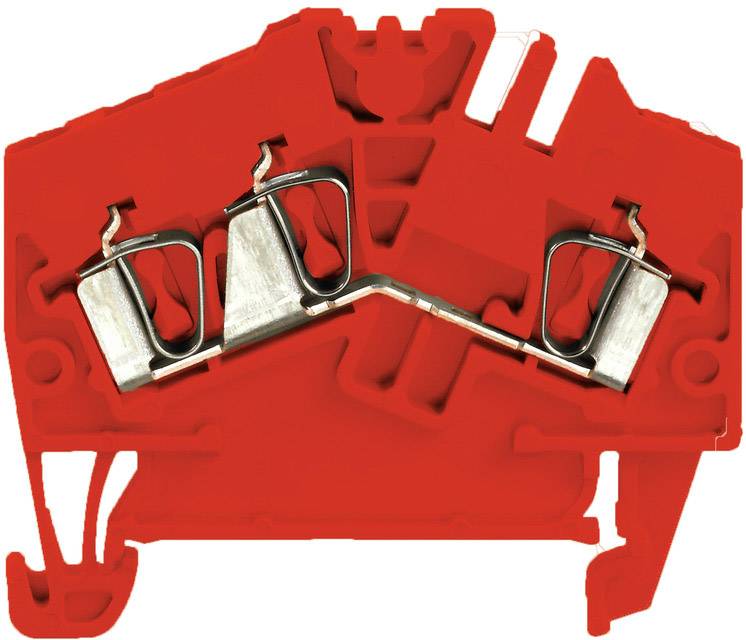

Weidmüller 1946220000 PG terminal 2.5 mm Pull spring Red 100 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Highlights & Details
Earth conductor terminal
- ZDU 2.5-2/3AN RT
Our service for you
Technical specifications
- Product type
PG terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
12
- AWG max.
26
- Clamp width
2.5 mm
- No. of rows
1
- Factory colour
Red
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
1946220000
- Content
100 pc(s)
- Type
ZDU 2.5-2/3AN RT
- Height
5.1 mm
- Length
50.5 mm
- RoHS-compliant
Yes
- Weight
7.12 g
- Flammability rating
UL 94 V0
- Connector colour
Red
- Insulation material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1915747 Weidmüller 1946220000 PG terminal 2.5 mm Pull spring Red 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1915747 Weidmüller 1946220000 PG terminal 2.5 mm Pull spring Red 100 pc(s)
Description
Terminal for connection or connection of wires, wires and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating provides for best conductivity.
