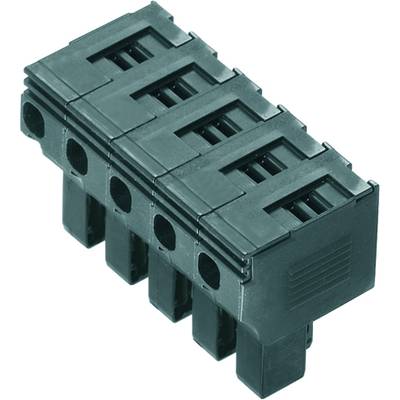

Weidmüller 1952120000 PTS 4 Fuse connector flexible: 0.5-4 mm² fixed: 0.5-4 mm² Number of pins: 5 10 pc(s) Black Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse connector
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.5 mm²
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 12.60 / piece)
€ 126.04
plus VAT.
Only 5 Set(s) available
Highlights & Details
Connectors
- Fuse connector
- Number of pins: 5
Our service for you
Technical specifications
- Height: 36.15 mm
- Flammability class according to UL 94: V-0
- Conductor outlet direction: 90°
- Mounting type: Plugged in
- 2 mm test tap
- Clamping range, max. push in connection: 4 mm²
- Clamping range, min. Push in port 0.5 mm²
- Blade size, push-in connection: 3.0 x 0.5 mm
- Conductor cross-section push-in connection, single-wire, max. 4 mm²
- Conductor cross-section push-in connection, single-wire, min.: 0.5 mm²
- Conductor cross-section, fine strand, push-in connection, max. 4 mm²
- Conductor cross-section, fine strand, push-in connection, min. 0.5 mm²
- Conductor cross-section, multi-strand, push-in connection, max.: 4 mm²
- Conductor cross-section, multi-strand, push-in connection, min.: 0.5 mm²
- Rated cross-section: 4 mm²
- Dimensioning surge voltage: 8 kV
- Packaging type
Piece
- Product type
Fuse connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
5
- Factory colour
Black
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
10 pc(s)
- Dim
(L x W) 27.3 mm x 55.45 mm
- Manufacturer part #
1952120000
16 - 12
- Stripping length
12 mm
- Connection
Push-in connector
- Industrial packaging
Yes
- Nominal voltage
600 V
- Width
55.45 mm
- Length
27.3 mm
- RoHS-compliant
Yes
- Temperature range
-50 °C - +120 °C
- Connector clip features
Lock
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 388369 Weidmüller 1952120000 PTS 4 Fuse connector flexible: 0.5-4 mm² fixed: 0.5-4 mm² Number of pins: 5 10 pc(s) Black Piece
User & Safety Instructions
User & Safety Instructions 388369 Weidmüller 1952120000 PTS 4 Fuse connector flexible: 0.5-4 mm² fixed: 0.5-4 mm² Number of pins: 5 10 pc(s) Black Piece
Description
Connectors. FieldPower®, PUSH-IN, 0.5 mm², - 4 mm², poles: 5
