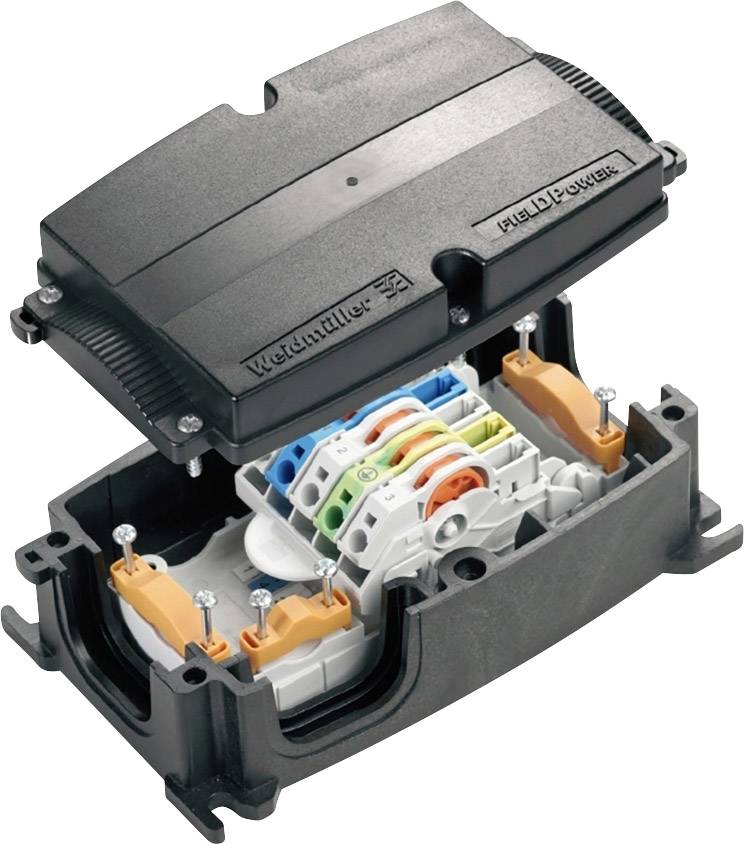

Image similar

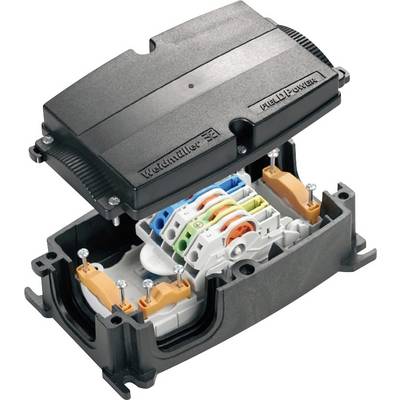

Image similar
Weidmüller 1957580000 FP Box Connector flexible: - fixed: - 1 pc(s) Black Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Nominal current - rounded value
41 A
Factory colour
Black
Nominal current
41 A
Technical specifications
- Height: 67 mm
- Connection 2: Plug PTDS4, plug PTS4
- Codable: Yes, coded to PE
- Protection type: IP65
- Silicone: No
- Halogen: No
- Flammability class according to UL 94: 5VA
- Blade dimensions: 0.6 x 3.5 mm
- Blade dimensions, Push-in connection: 0.6 x 3.5 mm
- Rated voltage: 800 V
- Rated cross-section: 6 mm²
- Packaging type
Piece
- Product type
Connector
- Factory colour
Black
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
1 pc(s)
- Dim
(L x W) 181 mm x 104 mm
- Manufacturer part #
1957580000
14-Oct
- Stripping length
14 mm
- Connection
Push-in connector
- Insulation material
Polycarbonate
- Nominal voltage
600 V
- Width
104 mm
- Length
181 mm
- RoHS-compliant
Yes
- Connector clip features
Halogen-free
Other
Black
104
181 mm
67 mm
9011
FALSE
104 mm
67 mm
Cover
185 mm
Plastic
9
IP65
FALSE
Closed
- UKCA
yes
