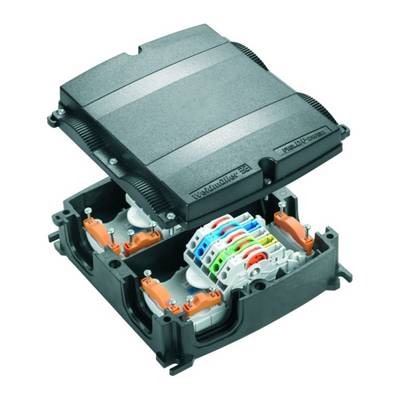

Weidmüller 1957590000 FP BOX 10P Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² Number of pins: 10 1 pc(s) Black B
EAN:
Part number:
Item no:
Packaging type
Box
Product type
Distributor box
Cross section (flexible) (min.)
2.5 mm²
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (min.)
1.5 mm²
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Highlights & Details
FieldPower® Box
- Distributor box
- Number of pins: 10
Our service for you
Technical specifications
- Height: 67 mm
- Flammability class according to UL 94: 5VA
- Blade size, push-in connection: 0.6 x 3.5 mm
- Conductor cross-section push-in connection, single-wire, max. 6 mm²
- Conductor cross-section push-in connection, single-wire, min.: 0.5 mm²
- Conductor cross-section, fine strand, push-in connection, max. 10 mm²
- Conductor cross-section, fine strand, push-in connection, min. 0.5 mm²
- Conductor cross-section, multi-strand, push-in connection, max.: 6 mm²
- Conductor cross-section, multi-strand, push-in connection, min.: 0.5 mm²
- Rated cross-section: 6 mm²
- Dimensioning surge voltage: 8 kV
- Insulating material: Polycarbonate, GF 10
- Protection system: IP65
- Packaging type
Box
- Product type
Distributor box
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
10
- Factory colour
Black
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
1 pc(s)
- Dim
(L x W) 181 mm x 192 mm
- Manufacturer part #
1957590000
14 - 10
- Stripping length
14 mm
- Connection
Quick-connect
- Insulation material
Polycarbonate
- Nominal voltage
600 V
- Width
192 mm
- Length
181 mm
- RoHS-compliant
Yes
- Temperature range
-40 °C - +55 °C. °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 256040 Weidmüller 1957590000 FP BOX 10P Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² Number of pins: 10 1 pc(s) Black B
User & Safety Instructions
User & Safety Instructions 256040 Weidmüller 1957590000 FP BOX 10P Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² Number of pins: 10 1 pc(s) Black B
Description
FieldPower® Box. IP65, polycarbonate, GF 10. The FieldPower® energy distributors make the error-free installation in extremely short time. -Repellent track and integrated in the cover functions are simply inserted. Robust and with a high degree of protection.
