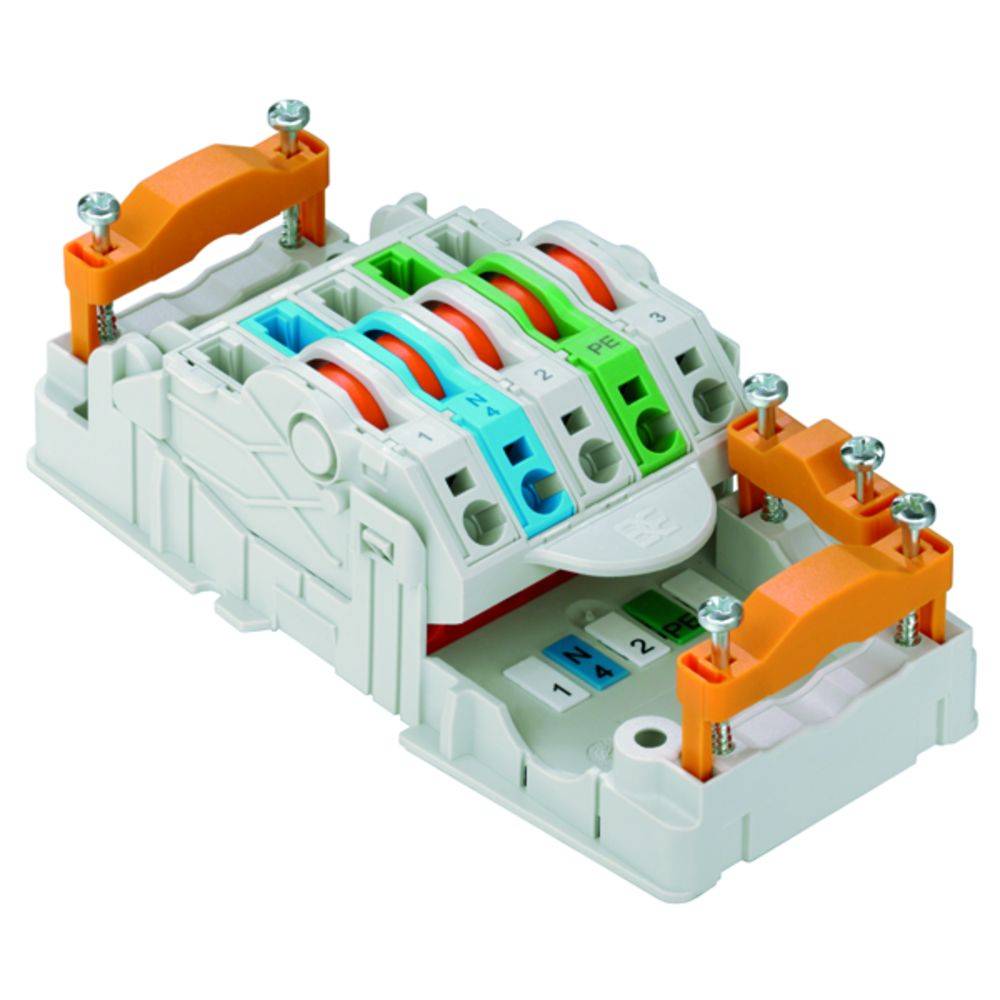

Weidmüller 1957620000 PT6 Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² 1 pc(s) Grey Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distributor box
Cross section (flexible) (min.)
2.5 mm²
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (min.)
1.5 mm²
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 5 Piece(s) available
Highlights & Details
FieldPower® Box
- PT6
Technical specifications
- Height: 54 mm
- Flammability class according to UL 94: V-0
- Blade size, push-in connection: 0.6 x 3.5 mm
- Conductor cross-section push-in connection, single-wire, max. 6 mm²
- Conductor cross-section push-in connection, single-wire, min.: 0.5 mm²
- Conductor cross-section, fine strand, push-in connection, max. 10 mm²
- Conductor cross-section, fine strand, push-in connection, min. 0.5 mm²
- Conductor cross-section, multi-strand, push-in connection, max.: 6 mm²
- Conductor cross-section, multi-strand, push-in connection, min.: 0.5 mm²
- Rated cross-section: 6 mm²
- Dimensioning surge voltage: 8 kV
- Insulating material: PA
- Protection class: IP20
- Packaging type
Piece
- Product type
Distributor box
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
1 pc(s)
- Dim
(L x W) 139.5 mm x 61.5 mm
- Manufacturer part #
1957620000
14 - 10
- Stripping length
14 mm
- Connection
Quick-connect
- Insulation material
PA
- Nominal voltage
600 V
- Width
61.5 mm
- Length
139.5 mm
- RoHS-compliant
Yes
- Temperature range
-40 °C - +55 °C. °C
- Type
PT6
Connection technique
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256041 Weidmüller 1957620000 PT6 Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² 1 pc(s) Grey Piece
User & Safety Instructions
User & Safety Instructions 256041 Weidmüller 1957620000 PT6 Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² 1 pc(s) Grey Piece
Description
FieldPower® Box, IP20, PA, AC Box. Power distribution using uncut cables with cross-sections from 1.5 to 6 mm². Power supply / T-branch tap via PUSH IN connection (0,5 bis 10 mm²) and/or plug-in connection (0,5 bis 4mm²). Coloured markings provide clear assignment of wires. Power supply, Power distribution, Power branching.
