Weidmüller 1985970000 FAD BLK9 2XHE20 M PLC cable 30 V AC, 60 V DC

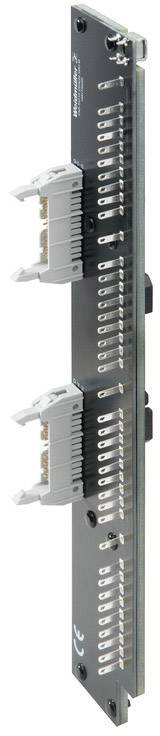

A printed circuit board assembly with two connectors, vertically arranged, shows electrical connections for industrial applications.

A printed circuit board assembly with two connectors, vertically arranged, shows electrical connections for industrial applications.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Net weight: 316,912 g
storage temperature, max.: 60 °C
storage temperature, min.: -40 °C
connection (field side): 2 x connectors according to IEC60603-13/DIN41651 20 p
maximum current per channel: 1 A
rated insulation voltage:< 250 V AC
Overvoltage category: III
contamination level: 2
dielectric strength test: 1.2 kVAC

Product type: PLC cable

Operating voltage: 30 V AC
60 V DC

Height: 36.4 mm

Length: 218 mm

Width: 53.6 mm

Dim: (L x W x H) 218 x 53.6 x 36.4 mm

Manufacturer part #: 1985970000

Type: FAD BLK9 2XHE20 M

Max. ambient temperature: +50 °C

Min. ambient temperature: -25 °C

UKCA: not relevant
