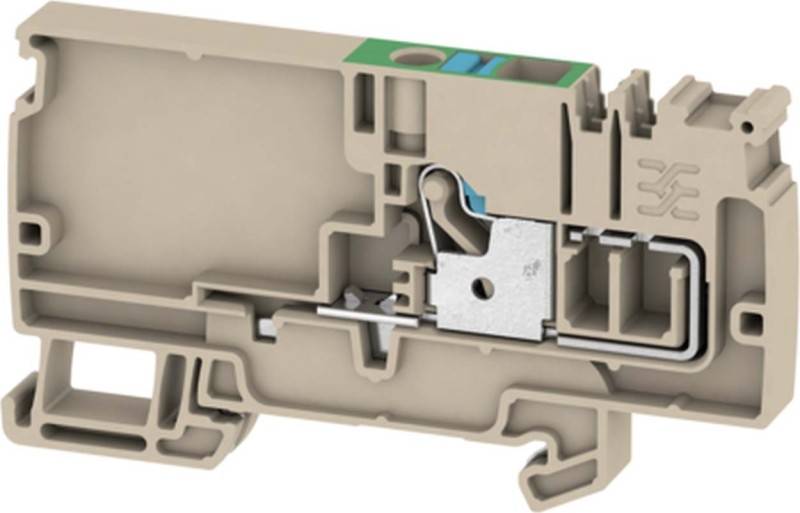

Image similar

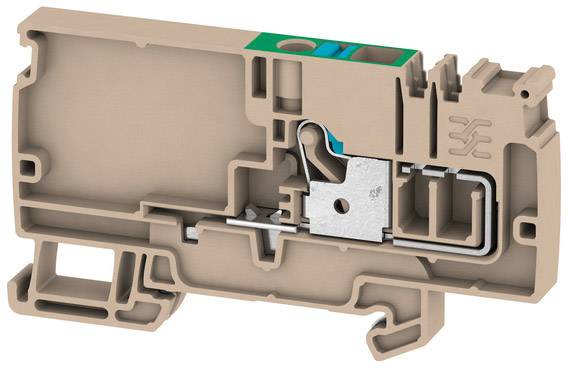

Image similar
Weidmüller 1988140000 Continuity 8.1 mm Pull spring Grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Number (Package size 20 pc(s))
Total (€ 3.53 / piece)
€ 70.58
plus VAT.
Only 5 Set(s) available
Highlights & Details
Feed-through terminal
Our service for you
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
22
- AWG max.
8
- Clamp width
8.1 mm
- Number of pins
1
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
500 V
- Stripping length (max.)
12 mm
- Manufacturer part #
1988140000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
AAP11 6 FE
- Dim
(L x W x H) 48 x 8.1 x 85.5 mm
- Width
8.1 mm
- Height
85.5 mm
- Length
48 mm
- RoHS-compliant
Yes
- Connector colour
Green
- Connections
1
- Nominal voltage (details)
500 V
- Nominal current (details)
41 A
- UKCA
not relevant
