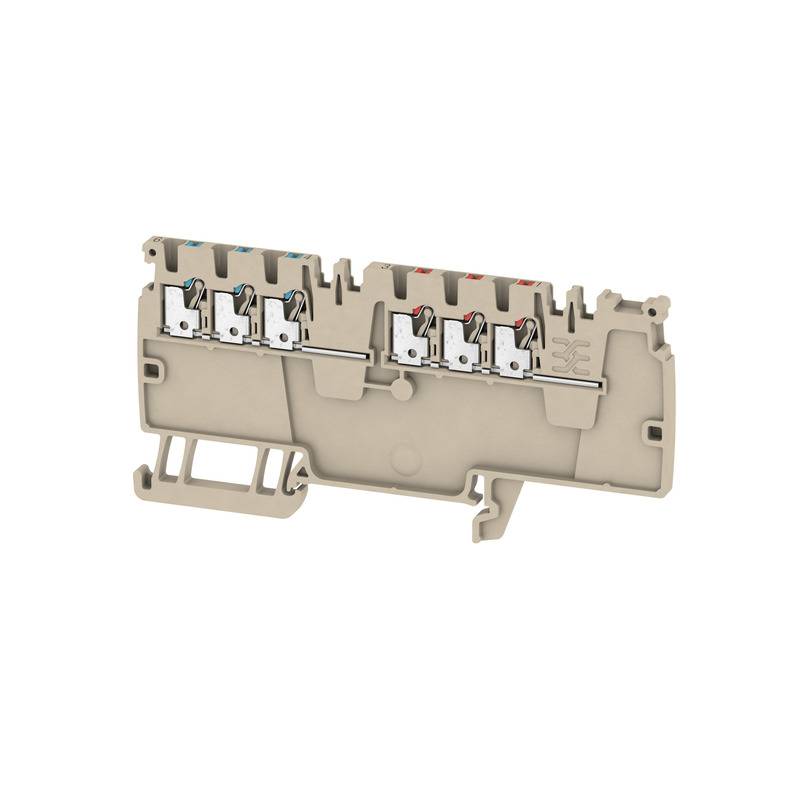

Weidmüller 1988280000 Continuity 3.1 mm Pull spring Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
1 mm²
Cross section (inflexible) (max.)
1 mm²
Nominal current - rounded value
16 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.60 / piece)
€ 130.24
plus VAT.
Only 5 Set(s) available
Highlights & Details
Feed-through terminal
Our service for you
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
1 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
1 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
3.1 mm
- Number of pins
6
- Factory colour
Grey
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
250 V
- Stripping length (max.)
8 mm
- Manufacturer part #
1988280000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
AAP13 1.5 LI-LI
- Dim
(L x W x H) 48 x 3.1 x 96 mm
- Width
3.1 mm
- Height
96 mm
- Length
48 mm
- RoHS-compliant
Yes
- Connector colour
Red
Blue
- Connections
6
- Nominal voltage (details)
250 V
- Nominal current (details)
16 A
- UKCA
not relevant
