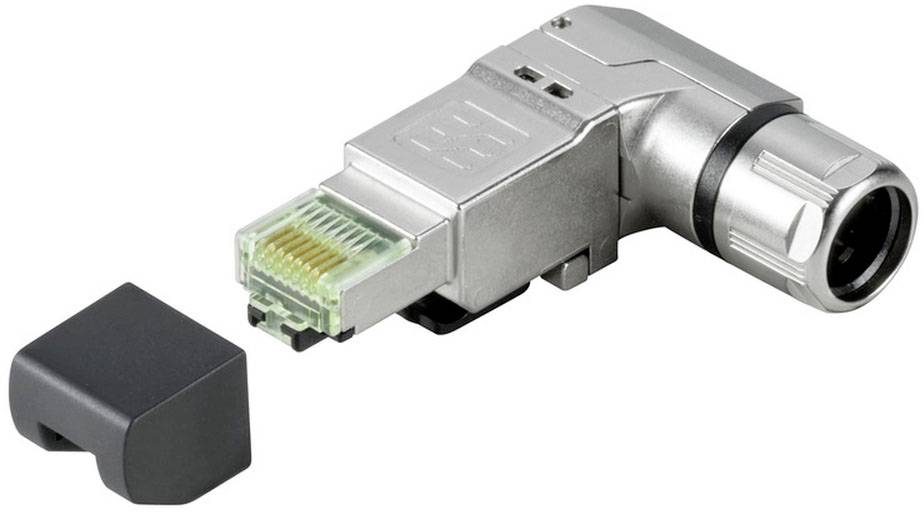

Weidmüller 1992870000 RJ45 connector RJ45 plug enclosure 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
RJ45 connector
Connector type
RJ45 plug enclosure
Connector standard
RJ45
Connection side A
RJ45
Connection side B
RJ45
Technical specifications
- Housing base material: Die-cast zinc, nickel-plated
- Insulation resistance:> 500 MΩ
- Plug cycles: 750
- Speed: 10 GBit
- shielding: 360° all-round closed
- Shell diameter: 5 mm - 9 mm
- current carrying capacity at 50 °C: 1 A
- Insulation diameter, min.: 1.1 mm
- insulation diameter, max.: 1.6 mm
- connection diameter, single-wire: 0.51 mm - 0.64 mm
- conductor cross-section, single-wire (AWG): AWG 24 - AWG 22
- wire diameter, fine wire: 0.46 mm - 0.76 mm
- wire cross-section, fine wire (AWG): AWG 27 - AWG 22
- contact resistance:< 20 mΩ
- withstand voltage contact / contact:> 1000 V/DC
- withstand voltage contact / shield:> 1500 V/DC
- Packaging type
Piece
- Type
IE-PS-RJ45-FH-90-A-1.6
- Product type
RJ45 connector
- Connector type
RJ45 plug enclosure
- Connector standard
RJ45
- Connection side A
RJ45
- Connection side B
RJ45
- Connection
Insulation piercing connector
- Contact surface
Ni/Au
IP20
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
1992870000
- Content
1 pc(s)
- Cable Ø (max.)
9 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 9 mm
Bus (jack)
Other
TRUE
FALSE
- UKCA
yes
