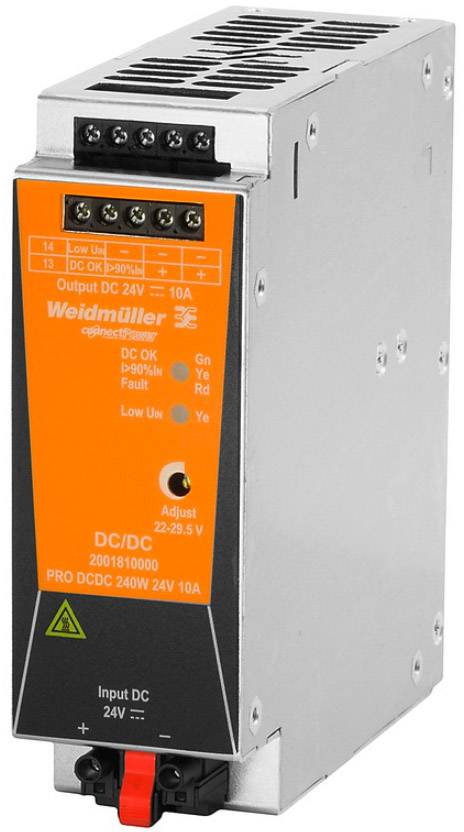

Weidmüller 2001810000 DC/DC converter 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC DC Converters
Technical specifications
- Storage temperature: -40 °C to +85 °C.
- Inrush current: Max. 15 A.
- Rise time< 9 ms
- Number of terminals: 10 (+ / - / signal)
- Tightening torque 0.4 Nm - 0.5 Nm
- Housing design: Metal, corrosion-resistant
- Type
DC/DC CONVERTER, 24 V
- Nominal input voltage
24 V/DC
- Product type
DC/DC converter
- Min. input voltage
14 V DC
- Output voltage
24 V DC
- Input voltage
14 - 32 V DC
- Input voltage (max.)
32 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Push-fit screw connector
- Dim
(L x W x H) 120 x 43 x 130 mm
- Weight
1110 g
- Output voltage (max.)
29.5 V DC
- Output voltage (min.)
22.5 V DC
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+70 °C
- Min. operating temperature (derating)
-25 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
2001810000
- Content
1 pc(s)
- MTBF
1250000 h
- PSU features
DC-to-DC converter
- Width
43 mm
- Height
130 mm
- Length
120 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
PRO DCDC 240W 24V 10A
- Efficiency
92 %
43
130 mm
120 mm
230 mm
260.9 W
103 mm
FALSE
FALSE
DC
Screw connection
TRUE
IP20
None
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1951746 Weidmüller 2001810000 DC/DC converter 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1951746 Weidmüller 2001810000 DC/DC converter 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
Description
The compact DC/DC converter ensures the systems optimally against failures for maximum availability.
· Balancing voltage fluctuations
· Regeneration of the output voltage for a stable voltage at the end long lines
· Construction of erdfreier supply systems through galvanic isolation
· Above-average performance data
This text is machine translated.
· Balancing voltage fluctuations
· Regeneration of the output voltage for a stable voltage at the end long lines
· Construction of erdfreier supply systems through galvanic isolation
· Above-average performance data
This text is machine translated.
