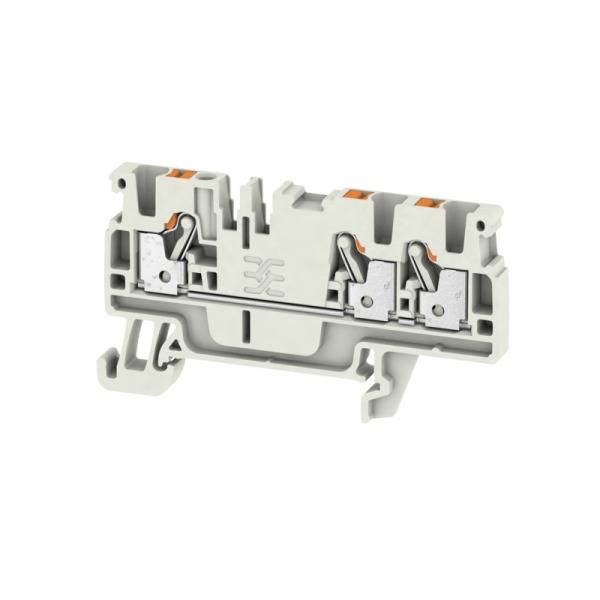

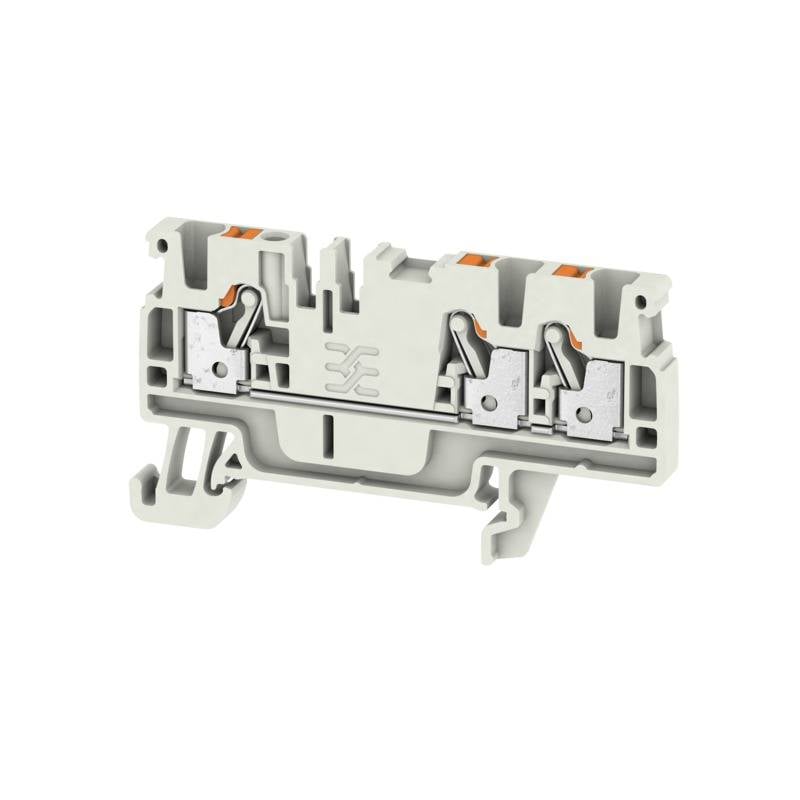

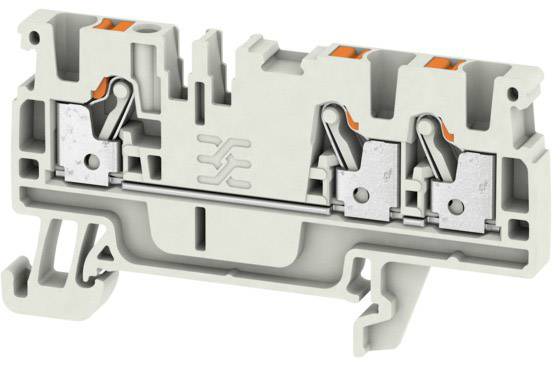

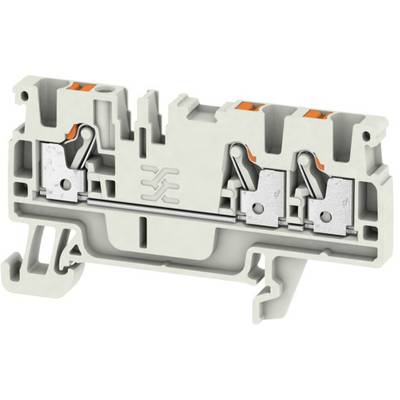

Weidmüller 2003120000 Continuity 5.1 mm Pull spring Light grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 1.09 / piece)
€ 109.24
plus VAT.
Only 5 Set(s) available
Highlights & Details
Feed-through terminal
- A3C 2.5 LTGY
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5.1 mm
- Number of pins
3
- Factory colour
Light grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
2003120000
- Content
100 pc(s)
- Type
A3C 2.5 LTGY
- Dim
(L x W x H) 36.5 x 5.1 x 66.5 mm
- Width
5.1 mm
- Height
66.5 mm
- Length
36.5 mm
- RoHS-compliant
Yes
- Connections
3
- Nominal voltage (details)
800 V
- Nominal current (details)
24 A
