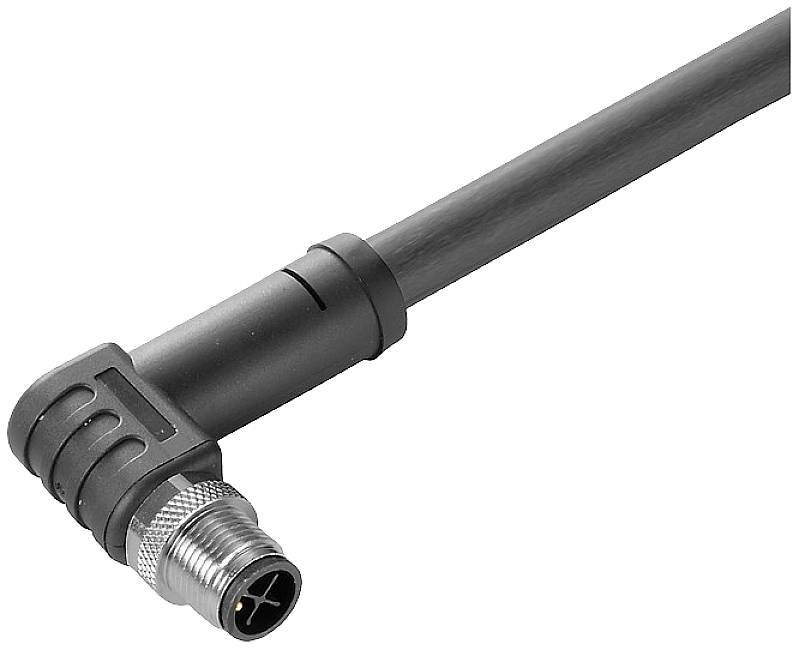

Weidmüller 2050050150 Sensor/actuator connector (pre-fab) M12 Plug 1.50 m No. of pins (RJ): 2+PE 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug
Connector standard
Sensor connector
Connection side A
M12 plug, right angle
Connection side B
Cable, open end
Datasheet (PDF)
Technical specifications
- Type
SAIL-M12W-S3-1.5P
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug
- Connector standard
Sensor connector
- Connection side A
M12 plug, right angle
- Connection side B
Cable, open end
- No. of pins
2+PE
- Cable length
1.50 m
- Jacket material
PUR
- Nominal voltage
600 V
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Outside Ø
8.50
- Cross-section (sensor/actuator wiring)
1.50 mm²
- Factory colour
Black
- Thread type connection side
M12
- Coding
S
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Manufacturer part #
2050050150
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1915192 Weidmüller 2050050150 Sensor/actuator connector (pre-fab) M12 Plug 1.50 m No. of pins (RJ): 2+PE 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1915192 Weidmüller 2050050150 Sensor/actuator connector (pre-fab) M12 Plug 1.50 m No. of pins (RJ): 2+PE 1 pc(s)
Description
Your devices in the peripherals are to large power can be supplied. With these M12 connectors from Weidmüller are more than 250 V and 2 A is possible without any problem. The compact S and T-coded M12 connectors are on the transfer of up to 630 V AC or 60V DC and 12 A.
