Buy Weidmüller 2051400000 Continuity 6.10 mm Pull spring Black 50 pc(s)

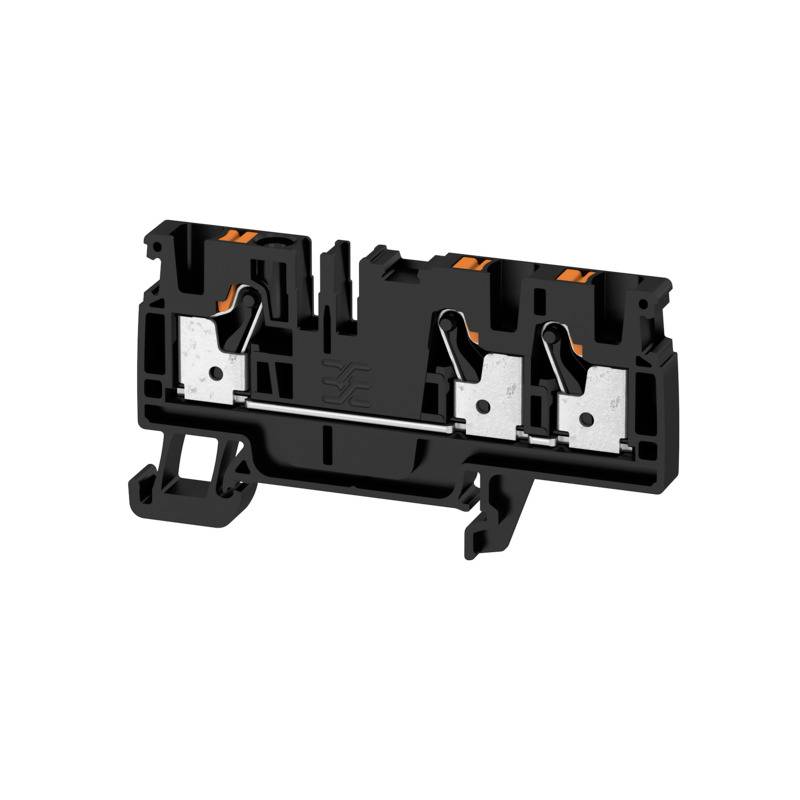

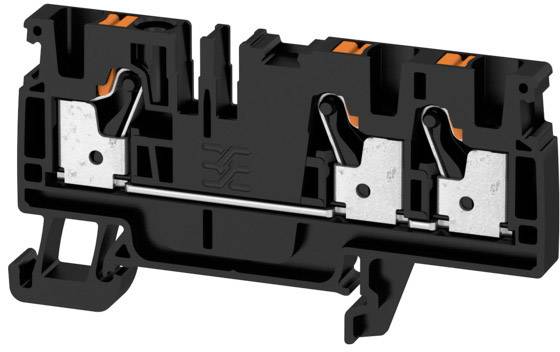

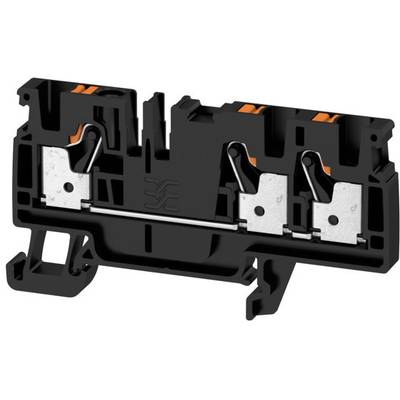

An electrical plug connector with two mounting points and metal rails. It is black with orange highlights.

Image similar

Connection

Pull spring

Cross section (flexible) (min.)

0.5 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.5 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.28 / piece)

€

Report legal concerns

Highlights & Details

Feed-through terminal

A3C 4 BK

Technical specifications

Connection: Pull spring

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 26

AWG max.: 12

Clamp width: 6.10 mm

No. of rows: 1

Pins per row: 3

Number of pins: 3

Factory colour: Black

Nominal current: 32 A

Nominal current - rounded value: 32 A

Nominal voltage: 800 V

Stripping length (max.): 12 mm

Manufacturer part #: 2051400000

Content: 50 pc(s)

Industrial packaging: Yes

Type: A3C 4 BK

Dim: (L x W x H) 39.50 x 6.10 x 74 mm

Width: 6.10 mm

Height: 74 mm

Length: 39.50 mm

RoHS-compliant: Yes

Connector colour: Orange

Product type: Continuity

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connection

Factory colour

Content

Product type

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Weidmüller 1991820000 Continuity 8.1 mm Pull spring Grey 50 pc(s)

Item no:1513815

A3C 6

41 A

Pull spring

Grey

50 pc(s)

Continuity

6 mm²

0.5 mm²

Weidmüller 1991850000 PG terminal 8.1 mm Pull spring Green, Yellow 50 pc(s)

Item no:1513816

A3C 6 PE

41 A

Pull spring

Green

50 pc(s)

PG terminal

6 mm²

0.5 mm²

Weidmüller 1991840000 Continuity 8.1 mm Pull spring Orange 50 pc(s)

Item no:1513817

A3C 6 OR

41 A

Pull spring

Orange

50 pc(s)

Continuity

6 mm²

0.5 mm²

Weidmüller 1521920000 Continuity 5.1 mm Pull spring Black 100 pc(s)

Item no:1513822

A3C 2.5 BK

24 A

Pull spring

Black

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521800000 Continuity 5.1 mm Pull spring Red 100 pc(s)

Item no:1513831

A3C 2.5 RD

24 A

Pull spring

Red

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521840000 Continuity 5.1 mm Pull spring Yellow 100 pc(s)

Item no:1513832

A3C 2.5 YL

24 A

Pull spring

Yellow

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521830000 Continuity 5.1 mm Pull spring Orange 100 pc(s)

Item no:1513845

A3C 2.5 OR

24 A

Pull spring

Orange

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 2003120000 Continuity 5.1 mm Pull spring Light grey 100 pc(s)

Item no:1514089

A3C 2.5 LTGY

24 A

Pull spring

Light grey

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521870000 Continuity 5.1 mm Pull spring Green 100 pc(s)

Item no:1514101

A3C 2.5 GN

24 A

Pull spring

Green

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521890000 Continuity 5.1 mm Pull spring White 100 pc(s)

Item no:1514102

A3C 2.5 WT

24 A

Pull spring

White

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Documents & Downloads

Datasheet

Datasheet 1669199 Weidmüller 2051400000 Continuity 6.10 mm Pull spring Black 50 pc(s)
