Buy Weidmüller 2122940000 Black 10 pc(s)

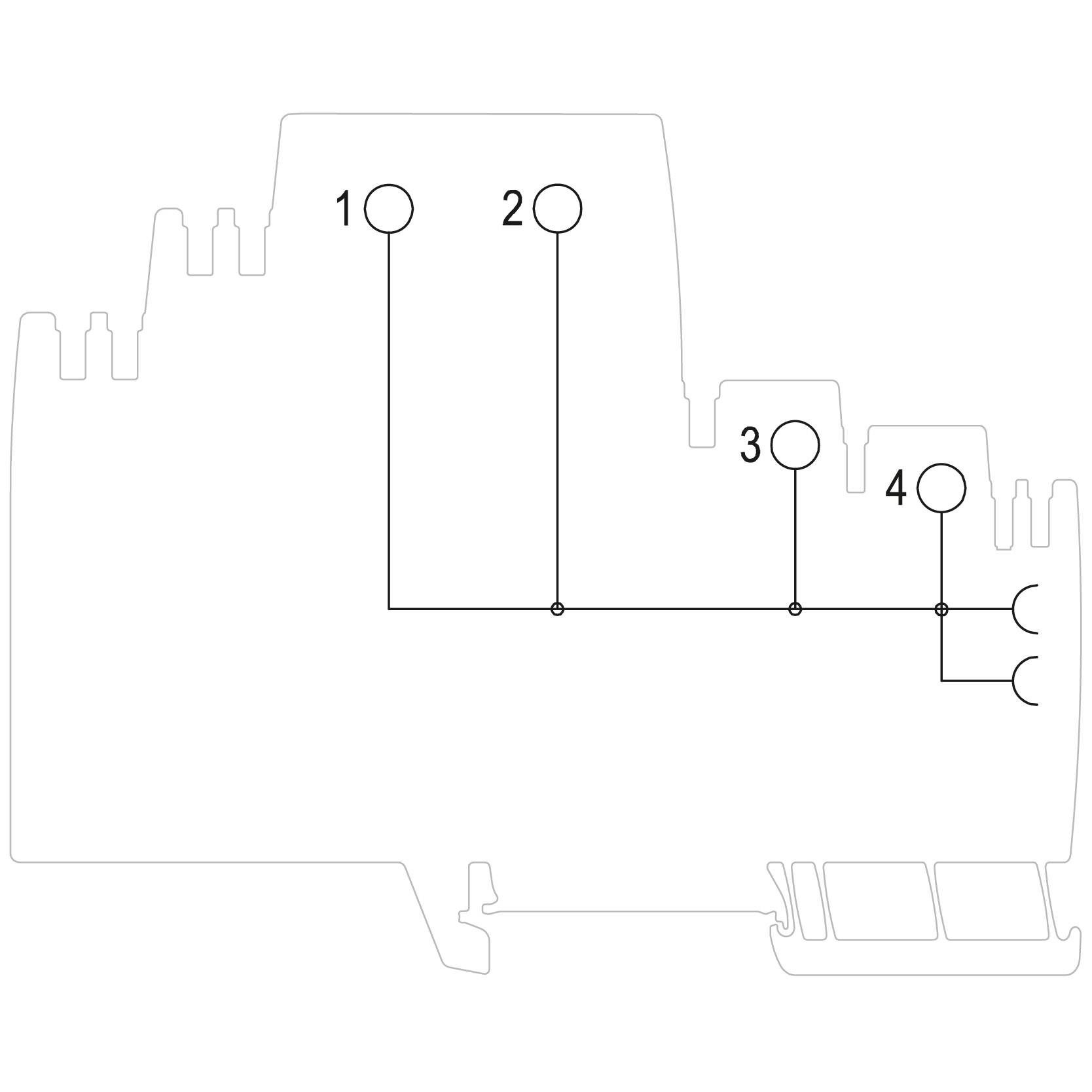

Electrical circuit diagram with numbered nodes 1 to 4, representing various circuits and connections in the system.

Stroke drawing/circuit diagram

Type

Blank

Factory colour

Black

AWG max.

AWG (min.)

Dim

(L x W x H) 96.5 x 6.10 x 125 mm

Datasheet (PDF)

Dispatches on Wed, 23 Sep

5 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 2.44 / piece)

€ 24.36

plus VAT.

Only 5 Set(s) available

Report legal concerns

Highlights & Details

Potential Distribution

Our service for you

Technical specifications

Factory colour: Black

Type: Blank

AWG max.: 12

AWG (min.): 26

Dim: (L x W x H) 96.5 x 6.10 x 125 mm

Connection: Pull spring

Manufacturer part #: 2122940000

Content: 10 pc(s)

Clamp width: 6.10 mm

Nominal current: 24 A

Nominal current - rounded value: 24 A

Number of pins: 4

Width: 6.10 mm

Height: 125 mm

Length: 96.5 mm

RoHS-compliant: Yes

Type: AMG XMD

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

Cross section (flexible) (min.): 0.14 mm²

Cross section (inflexible) (min.): 0.14 mm²

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1605450 Weidmüller 2122940000 Black 10 pc(s)

User & Safety Instructions

User & Safety Instructions 1605450 Weidmüller 2122940000 Black 10 pc(s)
