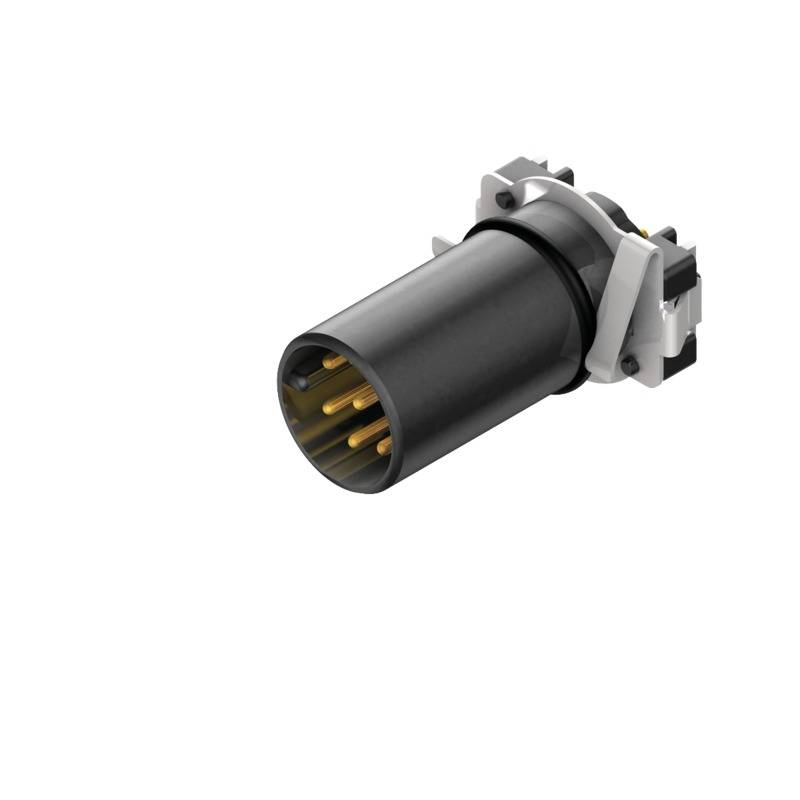

A cylindrical, black connector plug with gold-coloured contact pins, mounted in a rectangular frame.

Image similar

Product type

Sensor/actuator built-in connector

Connector type

Plug, vertical mount

Connector standard

SAI Weidmüller

Connection side A

M12 plug, built-in

Connection side B

Customisable

Datasheet (PDF)

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 6.72 / piece)

€ 168.06

plus VAT.

Report legal concerns

Highlights & Details

Sensor/actuator built-in connector

Our service for you

Technical specifications

Type: SAID-M12S-8-9SMT

Product type: Sensor/actuator built-in connector

Connector type: Plug, vertical mount

Connector standard: SAI Weidmüller

Connection side A: M12 plug, built-in

Connection side B: Customisable

No. of pins: 8

Nominal voltage: 30 V

Nominal current: 2 A

Nominal current - rounded value: 2 A

Connection: SMT
Soldering

Factory colour: Black

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuZn

Contact surface: Gold

: IP67

Min. temperature: -25 °C

Max. temperature: +95 °C

Seal type: Screw-on

Manufacturer part #: 2422420000

Content: 25 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Type

Connector standard

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

Thread type connection side

Weidmüller 2421750000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 3 25 pc(s) Piece

Item no:1513712

SAID-M8S-3-SMT

SAI Weidmüller

4 A

M8 plug, built-in

Plug, vertical mount

60 V

Weidmüller 2421780000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 3 25 pc(s) Piece

Item no:1513713

SAID-M8B-3S-SMT

SAI Weidmüller

4 A

Customisable

Socket, vertical vertical

60 V

Weidmüller 2422140000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 8 25 pc(s) Piece

Item no:1513715

SAID-M8B-8S-SMT

SAI Weidmüller

1.5 A

Customisable

Socket, vertical vertical

30 V

Weidmüller 2421720000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 3 25 pc(s)

Item no:1513897

SAID-M8B-3-SMT

SAI Weidmüller

4 A

Customisable

Socket, vertical vertical

60 V

Weidmüller 2421810000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 3 25 pc(s) Piece

Item no:1513898

SAID-M8S-3S-SMT

SAI Weidmüller

4 A

M8 plug, built-in

Plug, vertical mount

60 V

Weidmüller 2421870000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 4 25 pc(s) Piece

Item no:1513899

SAID-M8S-4-SMT

SAI Weidmüller

4 A

M8 plug, built-in

Plug, vertical mount

30 V

Weidmüller 2421930000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 4 25 pc(s)

Item no:1513902

SAID-M8S-4S-SMT

SAI Weidmüller

4 A

M8 plug, built-in

Plug, vertical mount

30 V

Weidmüller 2422110000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 8 25 pc(s) Piece

Item no:1513907

SAID-M8S-8-SMT

SAI Weidmüller

1.5 A

M8 plug, built-in

Plug, vertical mount

30 V

Weidmüller 2422120000 Sensor/actuator built-in connector M12 Socket, vertical vertical No. of pins (RJ): 5 25 pc(s)

Item no:1513908

2422120000

SAI Weidmüller

4 A

Customisable

Socket, vertical vertical

60 V

M12

Weidmüller 2422170000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 8 25 pc(s)

Item no:1513909

SAID-M8S-8S-SMT

Sensor connector

1.5 A

M8 plug, built-in

Plug, vertical mount

30 V

Documents & Downloads

Datasheet

Datasheet 1514275 Weidmüller 2422420000 Sensor/actuator built-in connector M12 Plug, vertical mount No. of pins (RJ): 8 25 pc(s)

User & Safety Instructions

User & Safety Instructions 1514275 Weidmüller 2422420000 Sensor/actuator built-in connector M12 Plug, vertical mount No. of pins (RJ): 8 25 pc(s)
