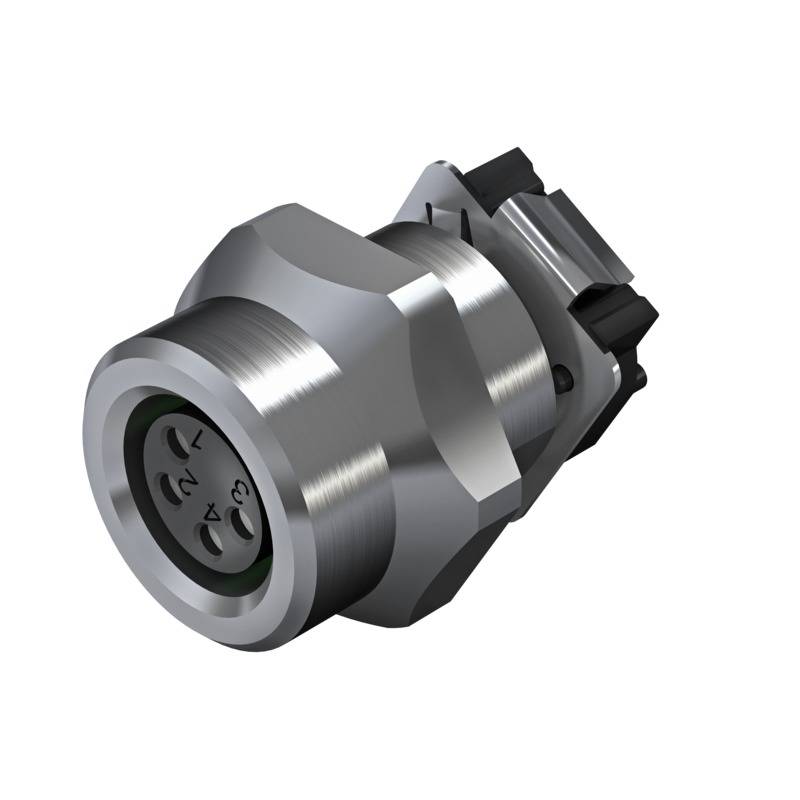

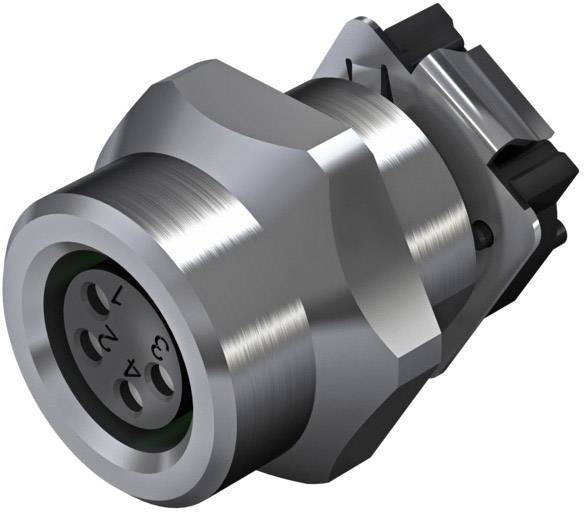

A silver industrial connector with four numbered pins in a cylindrical housing, suitable for machine applications.

Image similar

Product type

Sensor/actuator built-in connector

Connector type

Socket, vertical vertical

Connector standard

SAI Weidmüller

Connection side A

M8 socket, built-in

Connection side B

Customisable

Datasheet (PDF)

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 10.05 / piece)

€ 251.26

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Sensor/actuator built-in connector

Our service for you

Technical specifications

Type: SAIE-M8B-4S-F9THR

Product type: Sensor/actuator built-in connector

Connector type: Socket, vertical vertical

Connector standard: SAI Weidmüller

Connection side A: M8 socket, built-in

Connection side B: Customisable

No. of pins: 4

Nominal voltage: 30 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: Print

Factory colour: Silver

Thread type connection side: M8

Thread type (wiring and installation): M8

Contact material: CuZn

Contact surface: Gold

Sensor/actuator connectivity fittings: Front panel fitting

: IP67

Min. temperature: -30 °C

Max. temperature: +80 °C

Seal type: Screw-on

Manufacturer part #: 2423010000

Content: 25 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Connection side B

Type

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

Thread type connection side

Weidmüller 2421640000 Sensor/actuator built-in connector M12 Socket, vertical vertical No. of pins (RJ): 8 10 pc(s) Piece

Item no:1513710

M12 socket, built-in

SAIE-M12B-8-H5.5TL-M16

2 A

Customisable

Socket, vertical vertical

30 V

M12

Weidmüller 2421690000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 8 10 pc(s)

Item no:1513711

Customisable

SAIE-M8S-8-H5.5TL

1.5 A

M8 plug, built-in

Plug, vertical mount

30 V

Weidmüller 2421570000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 3 10 pc(s)

Item no:1513892

Customisable

SAIE-M8S-3-H5.5TL

4 A

M8 plug, built-in

Plug, vertical mount

30 V

Weidmüller 2421600000 Sensor/actuator built-in connector M12 Socket, vertical vertical No. of pins (RJ): 4 10 pc(s) Package

Item no:1513893

M12 socket, built-in

SAIE-M12B-4-H5.5TL-M16

4 A

Customisable

Socket, vertical vertical

250 V

M12

Weidmüller 2421610000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 4 10 pc(s)

Item no:1513894

Customisable

SAIE-M8B-4-H5.5TL

4 A

M8 socket, built-in

Socket, vertical vertical

30 V

Weidmüller 2421650000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 8 10 pc(s)

Item no:1513895

Customisable

SAIE-M8B-8-H5.5TL

1.5 A

M8 socket, built-in

Socket, vertical vertical

30 V

Weidmüller 2421660000 Sensor/actuator built-in connector M12 Socket, vertical vertical No. of pins (RJ): 4 10 pc(s) Piece

Item no:1513896

M12 socket, built-in

SAIE-M12B-4-H12TL-M16

4 A

Customisable

Socket, vertical vertical

250 V

M12

Weidmüller 2421890000 Sensor/actuator built-in connector M12 Plug, vertical mount No. of pins (RJ): 8 10 pc(s) Piece

Item no:1513900

Customisable

SAIE-M12S-8-H12TL-M16

2 A

M12 plug, built-in

Plug, vertical mount

30 V

M12

Weidmüller 2421580000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 4 10 pc(s) Piece

Item no:1514244

Customisable

SAIE-M8S-4-H5.5TL

4 A

M8 plug, built-in

Plug, vertical mount

30 V

Weidmüller 2421590000 Sensor/actuator built-in connector M8 Plug, vertical mount No. of pins (RJ): 5 10 pc(s)

Item no:1514245

Customisable

SAIE-M8S-5B-H5.5TL

4 A

M8 plug, built-in

Plug, vertical mount

30 V

Documents & Downloads

Datasheet

Datasheet 1513923 Weidmüller 2423010000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 4 25 pc(s)

User & Safety Instructions

User & Safety Instructions 1513923 Weidmüller 2423010000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 4 25 pc(s)
