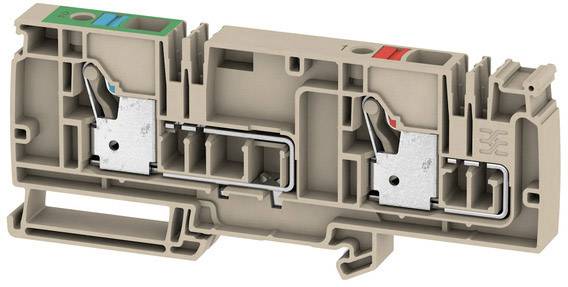

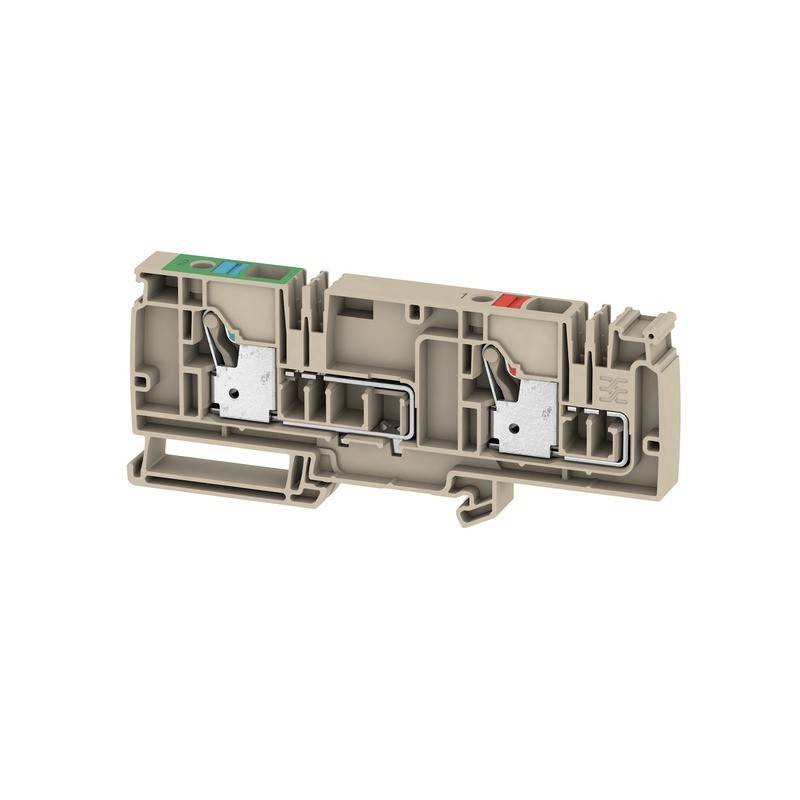

Weidmüller 2429000000 Feeder terminal 12 mm Pull spring Beige 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Feeder terminal
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Total (€ 3.11 / piece)
€ 1,865.40
plus VAT.
14-day return policy included
Highlights & Details
Power connection terminal
- AAP22 10 FE-LO
Technical specifications
- Packaging type
Piece
- Product type
Feeder terminal
- Features
Explosion-proof
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
12 mm
- Factory colour
Beige
- Nominal current
17 A
- Nominal current - rounded value
17 A
- Nominal voltage
250 V
- Stripping length (max.)
18 mm
- Manufacturer part #
2429000000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
AAP22 10 FE-LO
- Dim
(L x W x H) 53.50 x 12 x 129 mm
- Width
12 mm
- Height
129 mm
- Length
53.50 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Red
Blue
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1669173 Weidmüller 2429000000 Feeder terminal 12 mm Pull spring Beige 20 pc(s) Piece
