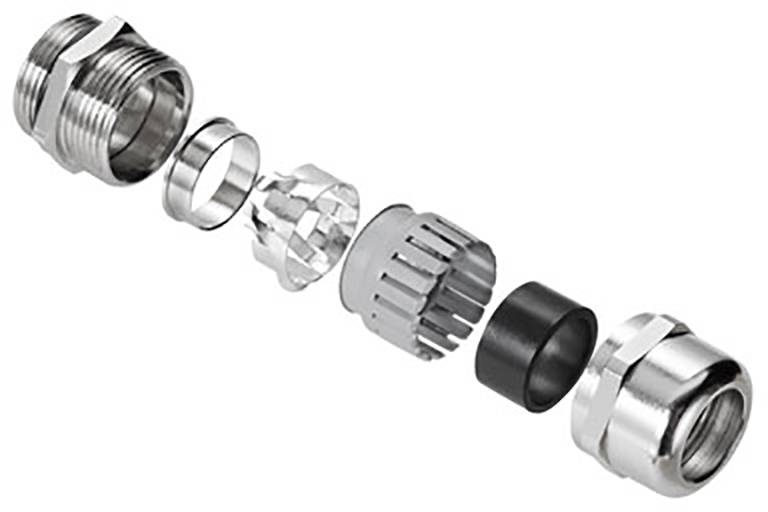

Weidmüller 2435160000 Cable gland M20 Brass 50 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20
Type
Metric
Material
Brass
Clamp Ø
7.5 mm
Datasheet (PDF)
Technical specifications
- Thread pitch 1.5 mm
- Sealing: CR
- O-ring: NBR
- Tightening torque 5.5 Nm
- Clamping insert: Polyamide
- Screen diameter 5.5 mm - 11.5 mm
- Product type
Cable gland
- External thread
M20
- Torque
5.5 Nm
- Type
Metric
- Material
Brass
- Clamp Ø
7.5 mm
- Terminal Ø (max.)
14 mm
- Thread length
8 mm
- Length
48 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
IP66
IP67
IP68
IP69K
- Spanner size
24 mm
- Weight
48 g
- Content
50 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
2435160000
- Type
VG M20 EMV-4 MS 8-14
- UKCA
yes
