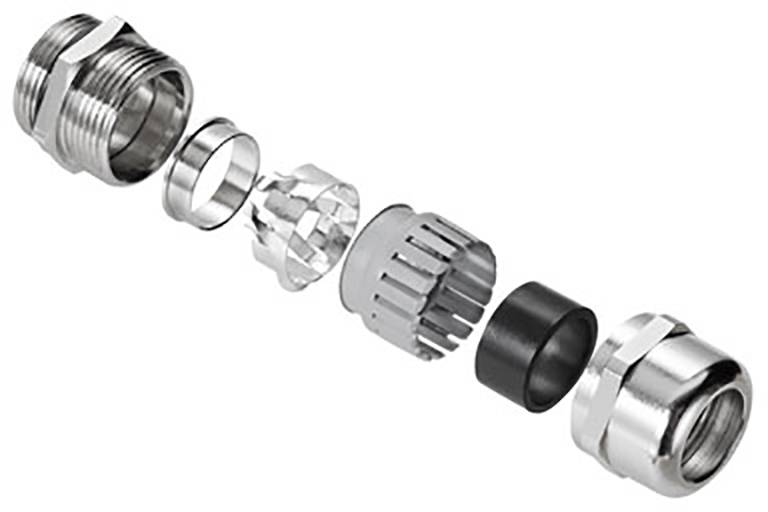

Weidmüller 2435170000 Cable gland M25 Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M25
Type
Metric
Material
Brass
Clamp Ø
10 mm
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Sealing: CR
- O-ring: NBR
- Tightening torque: 6 Nm
- Clamping insert: Polyamide
- Screen diameter 7 mm - 14 mm
- Product type
Cable gland
- External thread
M25
- Torque
6 Nm
- Type
Metric
- Material
Brass
- Clamp Ø
10 mm
- Terminal Ø (max.)
18 mm
- Thread length
8 mm
- Length
51 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
IP66
IP67
IP68
IP69K
- Spanner size
30 mm
- Weight
1 g
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
2435170000
- Type
VG M25 EMV-4 MS 10-18
- UKCA
not relevant
