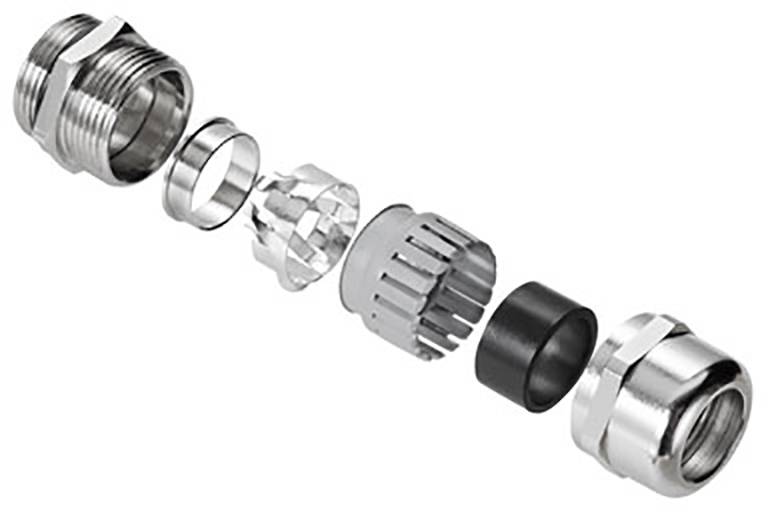

Weidmüller 2435180000 Cable gland M32 Brass 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M32
Type
Metric
Material
Brass
Clamp Ø
16 mm
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Sealing: CR
- O-ring: NBR
- Tightening torque: 6 Nm
- Clamping insert: Polyamide
- Screen diameter 12 mm - 20 mm
- Product type
Cable gland
- External thread
M32
- Torque
6 Nm
- Type
Metric
- Material
Brass
- Clamp Ø
16 mm
- Terminal Ø (max.)
25 mm
- Thread length
9 mm
- Length
62 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
IP66
IP67
IP68
IP69K
- Spanner size
40 mm
- Weight
0.16 g
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
2435180000
- Type
VG M32 EMV-4 MS 16-25
- UKCA
not relevant
