Buy Weidmüller 2467120000 SMPSU 24 V DC 40 A 960 W Content 1 pc(s)

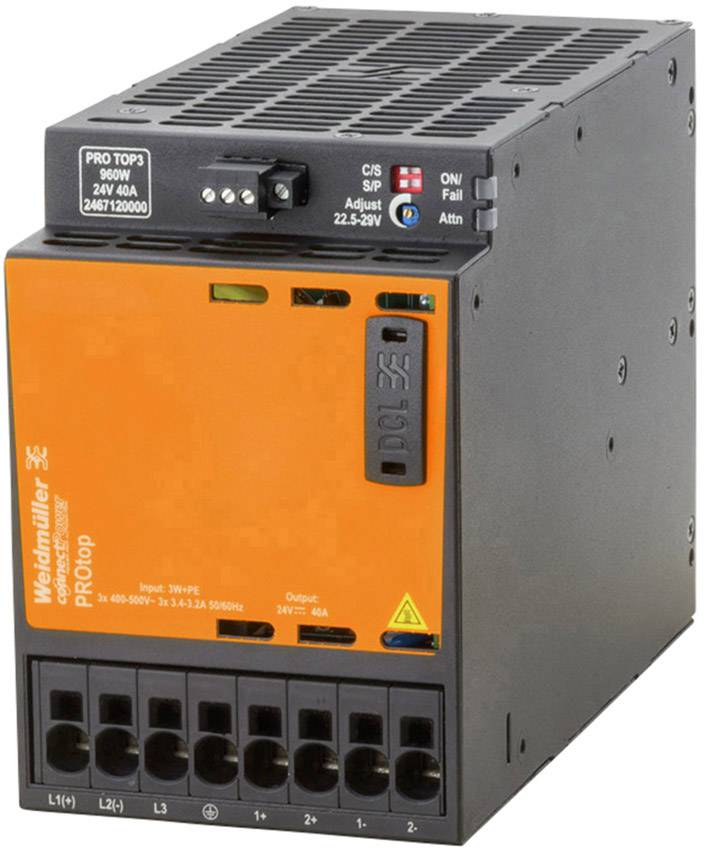

Power supply unit 'PROtop' in an orange and black enclosure, suitable for industrial applications. Displays connection options.

Image similar

Graph shows the relationship between load (Y-axis) and temperature (X-axis): increase at low temperatures, decline above 15°C.

1/2

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Switched-mode power supply PROtop 3-phase

Technical specifications

Storage temperature: -40 °C to +85 °C.
Inrush current: Max. 10 A.
Frequency range AC 45 Hz - 65 Hz
Surge protection input: Varistor
Rise time< 100 ms
Number of terminals: 4 (++ / --)
Housing design: Metal, corrosion-resistant

Type: Power supply, switched-mode power supply, 24 V.

Nominal input voltage: 3 x 400 - 500 V/AC

Product type: SMPSU

Min. input voltage: 320 V AC
450 V DC

Output voltage: 24 V DC

Input voltage: 320 - 575 V/AC, 450 - 800 V DC

Input voltage (max.): 800 V DC
575 V AC

Max. output current: 40 A

Output current (max.) - rounded: 40 A

: 960 W

Phases: 3

Output voltage (nominal): 24 V DC

Connection: Push-in connector

Dim: (L x W x H) 175 x 89 x 130 mm

Weight: 2490 g

Output voltage (max.): 28.8 V DC

Output voltage (min.): 22.5 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -25 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2467120000

Content: 1 pc(s)

MTBF: 1000000 h

Width: 89 mm

Height: 130 mm

Length: 175 mm

: IP20

Max. temperature: +70 °C

Min. temperature: -25 °C

Type: PRO TOP3 960W 24V 40A

Efficiency: 95.3 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Product type

Min. input voltage

Weidmüller 2467120000 SMPSU 24 V DC 40 A 960 W Content 1 pc(s)

Item no:1951797

This article

960 W

Push-in connector

800 V DC575 V AC

24 V DC

3 x 400 - 500 V/AC

40 A

SMPSU

320 V AC450 V DC

Weidmüller 2466870000 SMPSU 24 V DC 5 A 120 W Content 1 pc(s)

Item no:1661558

120 W

Push-in button

410 V DC277 V AC

24 V DC

100-240 V/AC120 - 340 V/DC

5 A

SMPSU

85 V AC48 V DC

Weidmüller 2466880000 SMPSU 24 V DC 10 A 240 W Content 1 pc(s)

Item no:1661559

240 W

Push-in button

410 V DC277 V AC

24 V DC

100-240 V/AC120 - 340 V/DC

10 A

SMPSU

85 V AC80 V DC

Weidmüller 2466890000 SMPSU 24 V DC 20 A 480 W Content 1 pc(s)

Item no:1661560

480 W

Push-in connector

410 V DC277 V AC

24 V DC

100-240 V/AC120 - 340 V/DC

20 A

SMPSU

85 V AC80 V DC

Weidmüller 2466900000 SMPSU 24 V DC 40 A 960 W Content 1 pc(s)

Item no:1661561

960 W

Push-in connector

410 V DC277 V AC

24 V DC

100-240 V/AC120 - 340 V/DC

40 A

SMPSU

85 V AC80 V DC

Weidmüller 2466920000 SMPSU 48 V DC 20 A 960 W Content 1 pc(s)

Item no:1661562

960 W

Push-in connector

410 V DC277 V AC

48 V DC

100-240 V/AC120 - 340 V/DC

20 A

SMPSU

85 V AC80 V DC

Weidmüller 2467030000 SMPSU 48 V DC 10 A 480 W Content 1 pc(s)

Item no:1661563

480 W

Push-in connector

410 V DC277 V AC

48 V DC

100-240 V/AC120 - 340 V/DC

10 A

SMPSU

85 V AC80 V DC

Weidmüller 2466850000 SMPSU 24 V DC 3 A 72 W Content 1 pc(s)

Item no:1661581

72 W

Push-in button

410 V DC277 V AC

24 V DC

100-240 V/AC120 - 340 V/DC

3 A

SMPSU

85 V AC80 V DC

Weidmüller 2467040000 SMPSU 48 V DC 10 A 480 W Content 1 pc(s)

Item no:1949639

480 W

Screw terminalPlug

410 V DC277 V AC

48 V DC

100-240 V/AC120 - 340 V/DC

10 A

SMPSU

85 V AC80 V DC

Weidmüller 2467080000 SMPSU 24 V DC 10 A 240 W Content 1 pc(s)

Item no:1949640

240 W

Push-in button

800 V DC575 V AC

24 V DC

3 x 400 - 500 V/AC

10 A

SMPSU

320 V AC450 V DC

Documents & Downloads

Datasheet

Datasheet 1951797 Weidmüller 2467120000 SMPSU 24 V DC 40 A 960 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1951797 Weidmüller 2467120000 SMPSU 24 V DC 40 A 960 W Content 1 pc(s)

Description

High-end power supplies must also work efficiently and reliably in harsh industrial environments. To do this, high power reserves, long life and optimal protection against overvoltages, vibrations and extreme temperature conditions.
The new DCL technology gives PROtop superior dynamic range. This can be either for reliable tripping of circuit breakers or also for powerful motor starts.

This text is machine translated.
