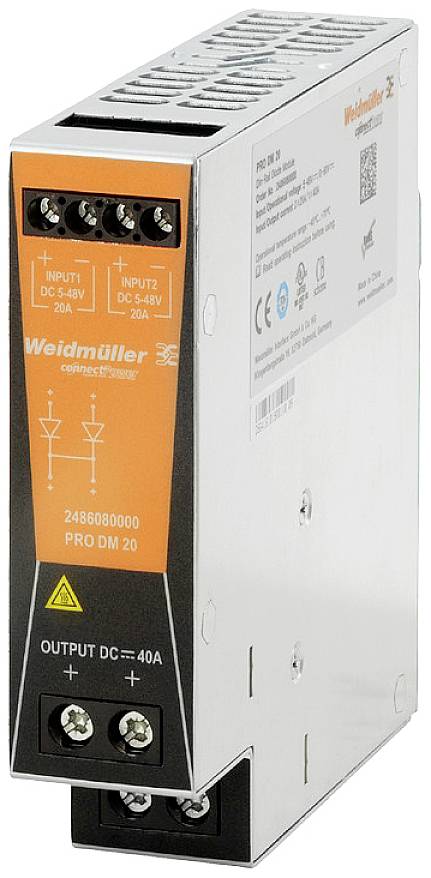

Weidmüller 2486080000 Diode module 20 A 480 VA, 932 W Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Conductor cross-section, AWG/kcmil, min.: 22Conductor cross-section, AWG/kcmil , max.: 8Conductor cross-section, flexible, min.: 0.5 mm²Conductor cross-section, flexible, max.: 16 mm²Conductor cross-section, rigid , min.: 0.5 mm²Conductor cross-section, rigid , max.: 16 mm²
- Nominal input voltage
24 V/DC
- Product type
Diode module
- Min. input voltage
0 V DC
- Input voltage (max.)
60 V DC
- Max. output current
20 A
- Output current (max.) - rounded
20 A
480 VA
932 W
- Connection
Screws
- Dim
(L x W x H) 125 x 32 x 125 mm
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
2486080000
- Content
1 pc(s)
- Width
32 mm
- Height
125 mm
- Length
125 mm
IP20
- Type
PRO DM 20
32
125 mm
125 mm
480 W
FALSE
2
DC
Screw connection
TRUE
IP20
None
None
- UKCA
yes
