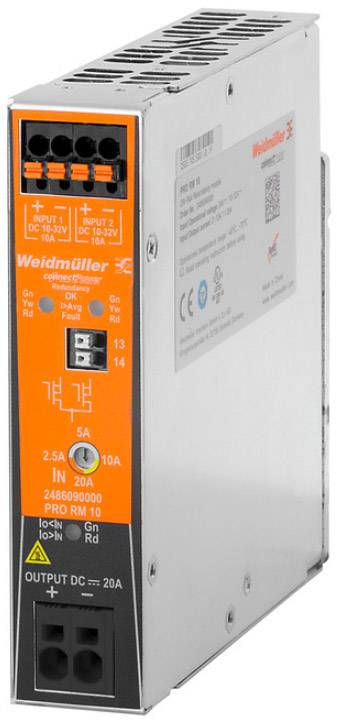

Weidmüller 2486090000 Redundancy module 24 A Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Storage temperature: -40 °C to +85 °C.
- Number of terminals: 2 (+ / -)
- Type
Redundancy module, 24 V DC
- Nominal input voltage
24 V/DC
- Type
Redundancy module
- Product type
Redundancy module
- Min. input voltage
10 V DC
- Output voltage
0.13 V
- Inputs
7.5 A, 10 A, 12 A
- Input voltage
10 - 32 V DC
- Input voltage (max.)
32 V DC
- Max. output current
24 A
- Output current (max.) - rounded
24 A
- Connection
Push-in connector
- Dim
(L x W x H) 125 x 30 x 130 mm
- Weight
497 g
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+70 °C
- Min. operating temperature (derating)
-40 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
2486090000
- Content
1 pc(s)
- Width
30 mm
- Height
130 mm
- Length
125 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Type
PRO RM 10
- Efficiency
98 %
- UKCA
yes
