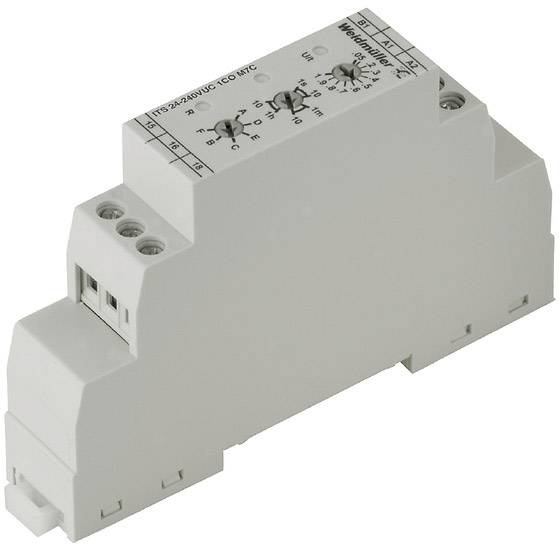

A white DIN rail multi-function relay with rotary controls and technical markings on the top surface, mounted on a DIN rail.

A white DIN rail multi-function relay with rotary controls and technical markings on the top surface, mounted on a DIN rail.

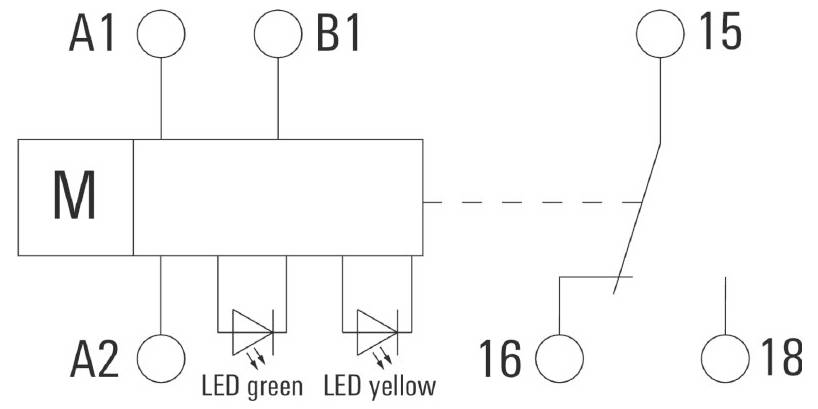

'Electrical schematic showing connections from module M to points A1, A2, B1, with green and yellow LEDs. Points 15, 16, 18 are unconnected.'

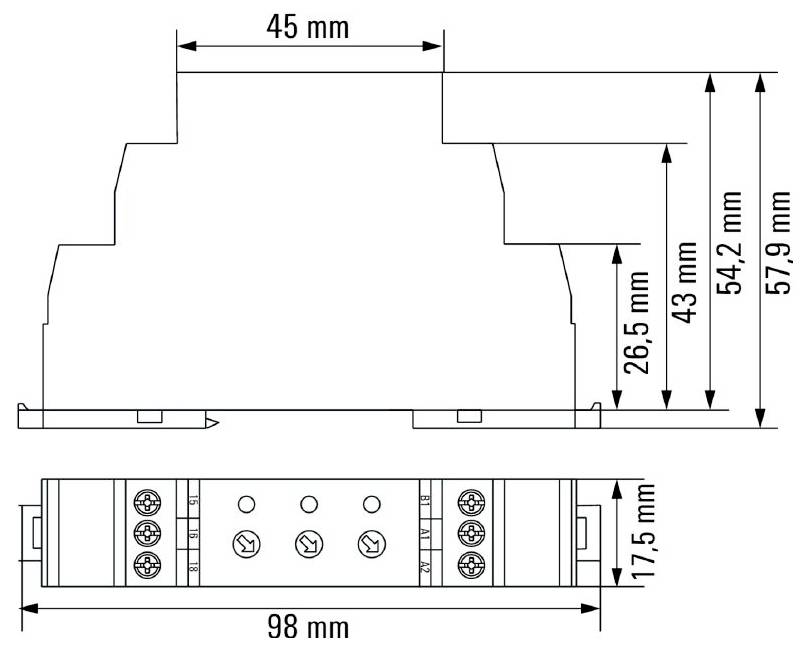

Technical drawing of a device showing dimensions: 45 mm width, 17.5 mm height, and 98 mm length. Side view heights: 26.5 mm, 43 mm, 54.2 mm, and 57.9 mm.

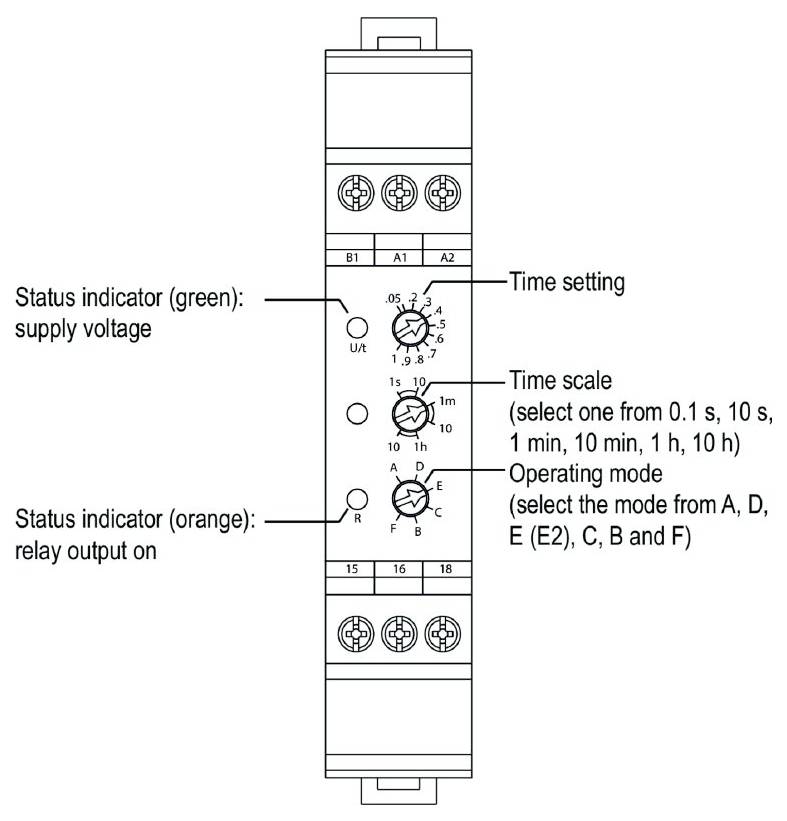

Diagram of a relay with status indicators for supply voltage and relay outputs. Shows time and mode settings, including time scales and operating modes.

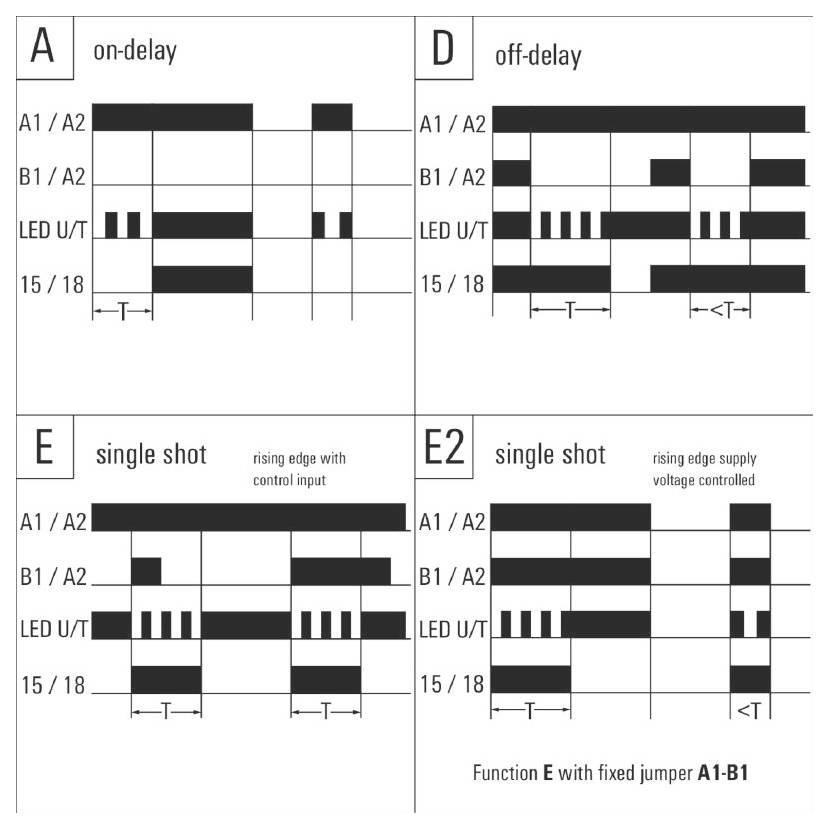

Diagram showing four timing functions for relays: 'on-delay', 'off-delay', 'single shot with control input', and 'single shot with voltage control', illustrating signal connections A1/A2, B1/A2, LED U/T, and 15/18.

'Diagram of three timing modes: C - single shot; B - clock generator pause first; F - flip-flop/latching, showing sequence differences.'

1/6

Packaging type

Piece

Product type

TDR (front-mount)

Type

Multifunction

Functions

Timer

Contact type

1 change-over

Datasheet (PDF)

Weidmüller

Unavailable

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: TDR (front-mount)

Type: ITS 24-240VUC 1CO M7C

Type: Multifunction

Functions: Timer

Contact type: 1 change-over

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1950057 Weidmüller 2496190000 ITS 24-240VUC 1CO M7C TDR (front-mount) Multifunction 1 pc(s) 1 change-over Piece

User & Safety Instructions

User & Safety Instructions 1950057 Weidmüller 2496190000 ITS 24-240VUC 1CO M7C TDR (front-mount) Multifunction 1 pc(s) 1 change-over Piece

Description

Timer relay for front mounting
