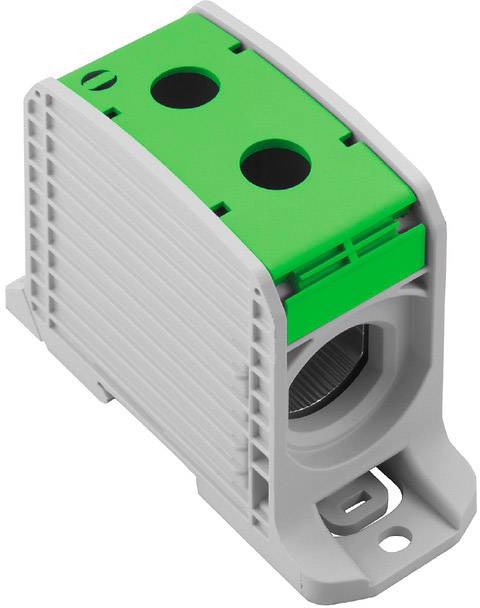

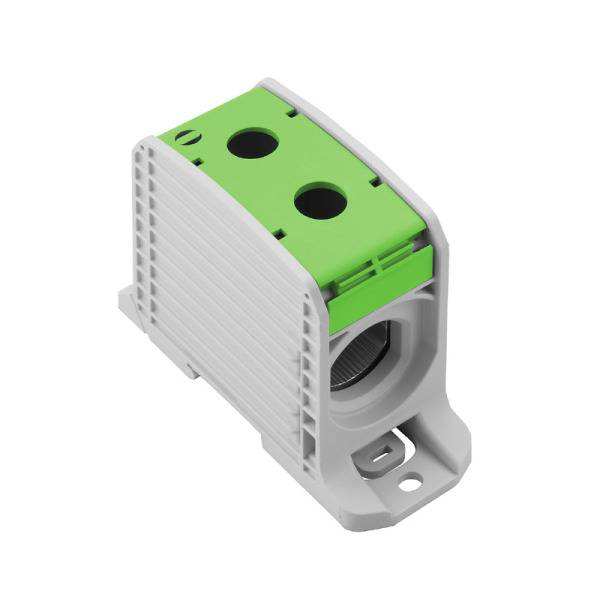

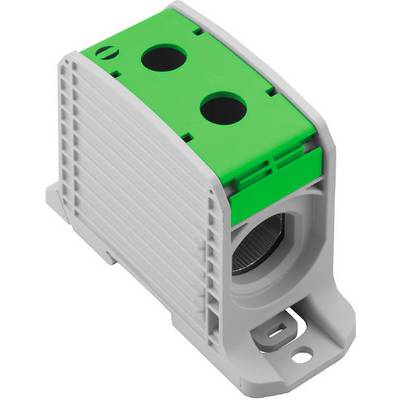

Weidmüller 2502870000 Continuity 45 mm Screws Grey, Green 1 pc(s)
EAN:
Part number:
Item no:
Connection
Screws
Cross section (flexible) (min.)
10 mm²
Cross section (flexible) (max.)
300 mm²
Cross section (inflexible) (min.)
10 mm²
Cross section (inflexible) (max.)
300 mm²
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€
Only 5 Piece(s) available
Highlights & Details
Feed-through terminal
- WPD 133 1X300/1X300 GN
Technical specifications
- Connection
Screws
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
300 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
300 mm²
- Clamp width
45 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
Green
- Nominal current
520 A
- Nominal current - rounded value
520 A
- Nominal voltage
1000 V
- Manufacturer part #
2502870000
- Content
1 pc(s)
- Industrial packaging
No
- Type
WPD 133 1X300/1X300 GN
- Dim
(L x W x H) 83.50 x 45 x 118 mm
- Width
45 mm
- Height
118 mm
- Length
83.50 mm
- RoHS-compliant
Yes
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 1669292 Weidmüller 2502870000 Continuity 45 mm Screws Grey, Green 1 pc(s)
