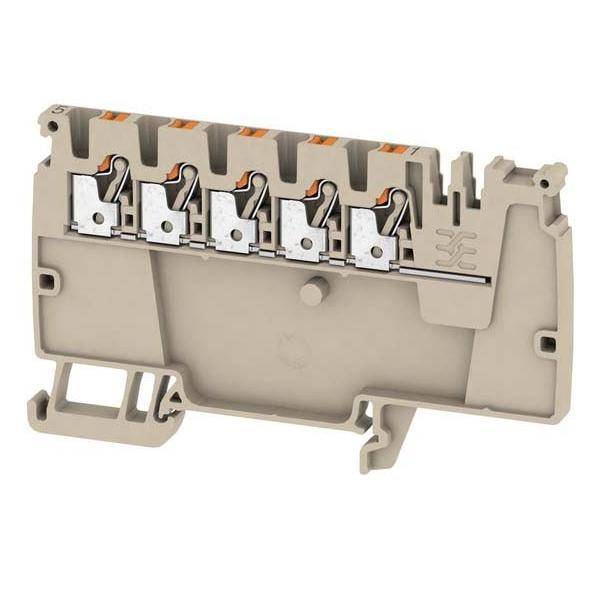

Weidmüller 2503880000 Distributor serial terminal 5.1 mm Pull spring Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Distributor serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.52 / piece)
€ 126.04
plus VAT.
Only 5 Set(s) available
Highlights & Details
Distributor serial terminal
- AAP12 2.5 LI OR
Technical specifications
- Product type
Distributor serial terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Clamp width
5.1 mm
- No. of rows
1
- Pins per row
5
- Number of pins
5
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
2503880000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
AAP12 2.5 LI OR
- Dim
(L x W x H) 54 x 5.1 x 89 mm
- Width
5.1 mm
- Height
89 mm
- Length
54 mm
- RoHS-compliant
Yes
- Connector colour
Orange
- UKCA
not relevant
