Buy Weidmüller 2508180000 Continuity 3.5 mm Pull spring Dark blue 100 pc(s)

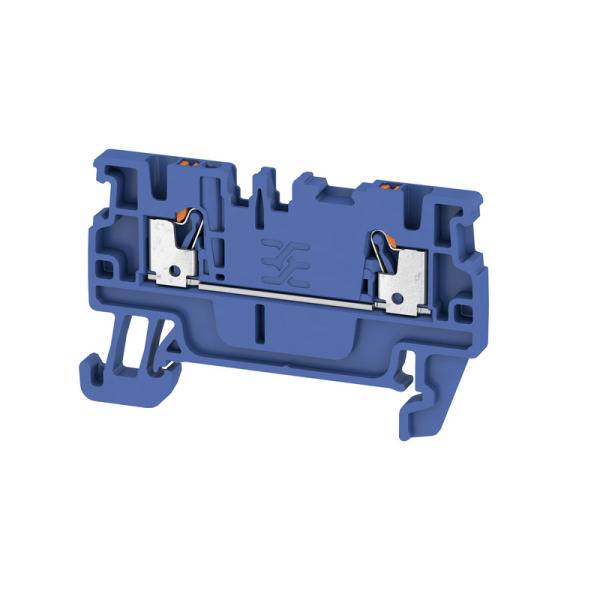

Blue electronic terminal block with metal clips and orange details in a technical context.

Image similar

Product type

Continuity

Connection

Pull spring

Cross section (flexible) (max.)

0.75 mm²

Cross section (inflexible) (max.)

1.5 mm²

Nominal current - rounded value

17.5 A

Datasheet (PDF)

Show alternatives

Sales and shipping:

Total (€ 0.69 / piece)

€

Report legal concerns

Highlights & Details

Feed-through terminal

A2C 1.5 DBL

Technical specifications

Product type: Continuity

Connection: Pull spring

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 0.75 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 1.5 mm²

AWG (min.): 26

AWG max.: 14

Clamp width: 3.5 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Factory colour: Dark blue

Nominal current: 17.5 A

Nominal current - rounded value: 17.5 A

Nominal voltage: 500 V

Stripping length (max.): 8 mm

Manufacturer part #: 2508180000

Content: 100 pc(s)

Industrial packaging: Yes

Type: A2C 1.5 DBL

Dim: (L x W x H) 33.5 x 3.5 x 55 mm

Width: 3.5 mm

Height: 55 mm

Length: 33.5 mm

RoHS-compliant: Yes

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connection

Factory colour

Content

Product type

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Weidmüller 1521950000 Continuity 5.1 mm Pull spring Green 100 pc(s)

Item no:1513812

A2C 2.5 GN

24 A

Pull spring

Green

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521930000 Continuity 5.1 mm Pull spring Orange 100 pc(s)

Item no:1513825

A2C 2.5 OR

24 A

Pull spring

Orange

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521980000 Continuity 5.1 mm Pull spring Black 100 pc(s)

Item no:1513826

A2C 2.5 BK

24 A

Pull spring

Black

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1991800000 Continuity 8.1 mm Pull spring Orange 50 pc(s)

Item no:1513830

A2C 6 OR

41 A

Pull spring

Orange

50 pc(s)

Continuity

6 mm²

0.5 mm²

Weidmüller 1989890000 PG terminal 5.1 mm Pull spring Green, Yellow 50 pc(s)

Item no:1513833

A2C 2.5 PE /DT/FS

24 A

Pull spring

GreenYellow

50 pc(s)

PG terminal

2.5 mm²

0.5 mm²

Weidmüller 1552820000 Continuity 3.5 mm Pull spring Blue 100 pc(s)

Item no:1513837

A2C 1.5 BL

17.5 A

Pull spring

Blue

100 pc(s)

Continuity

1.5 mm²

0.75 mm²

0.5 mm²

Weidmüller 1521850000 Continuity 5.1 mm Pull spring Grey 100 pc(s)

Item no:1513847

A2C 2.5

24 A

Pull spring

Grey

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521680000 PG terminal 5.1 mm Pull spring Green, Yellow 50 pc(s)

Item no:1514061

A2C 2.5 PE

24 A

Pull spring

GreenYellow

50 pc(s)

PG terminal

2.5 mm²

0.5 mm²

Weidmüller 1521940000 Continuity 5.1 mm Pull spring Yellow 100 pc(s)

Item no:1514075

A2C 2.5 YL

24 A

Pull spring

Yellow

100 pc(s)

Continuity

2.5 mm²

0.5 mm²

Weidmüller 1521970000 Continuity 5.1 mm Pull spring White 100 pc(s)

Item no:1514076

A2C 2.5 WT

24 A

Pull spring

White

100 pc(s)

Continuity

2.5 mm²

0.5 mm²
