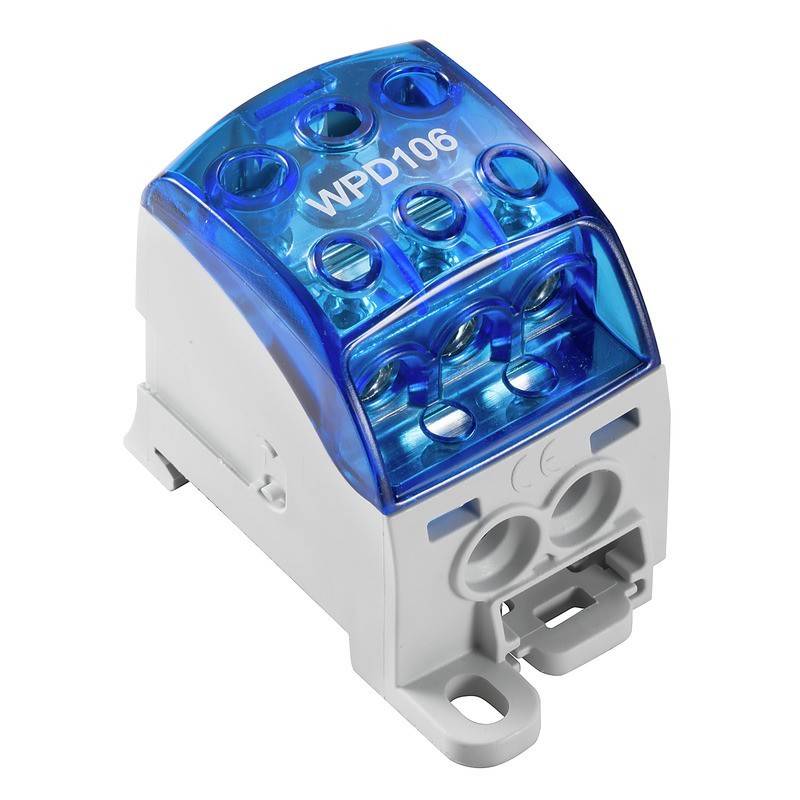

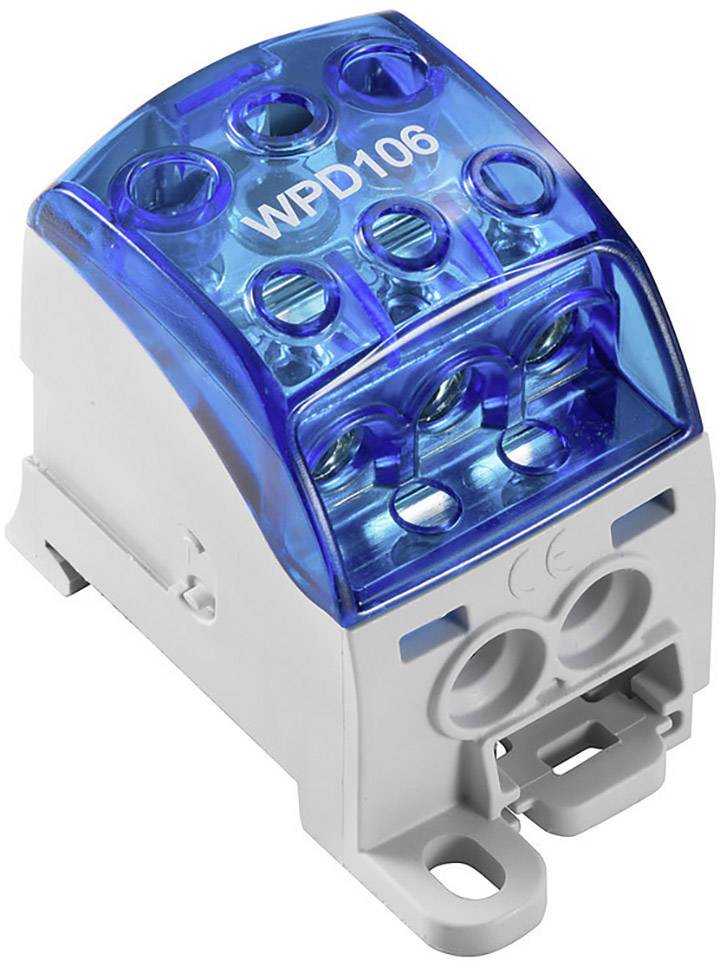

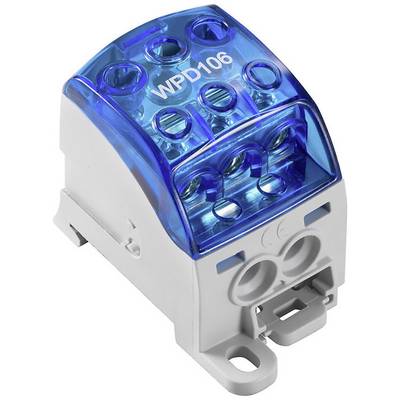

Weidmüller 2518570000 Distribution block Screws Grey, Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
70 mm²
Cross section (inflexible) (max.)
70 mm²
Nominal current - rounded value
192 A
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
70 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
70 mm²
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
Blue
- Nominal current
192 A
- Nominal current - rounded value
192 A
- Nominal voltage
1000 V
- Manufacturer part #
2518570000
- Content
1 pc(s)
- Type
WPD 106 1X70/2X25+3X16 BL
- Dim
(L x W x H) 50.40 x 39.50 x 74.50 mm
- Width
39.50 mm
- Height
74.50 mm
- Length
50.40 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1669221 Weidmüller 2518570000 Distribution block Screws Grey, Blue 1 pc(s)
