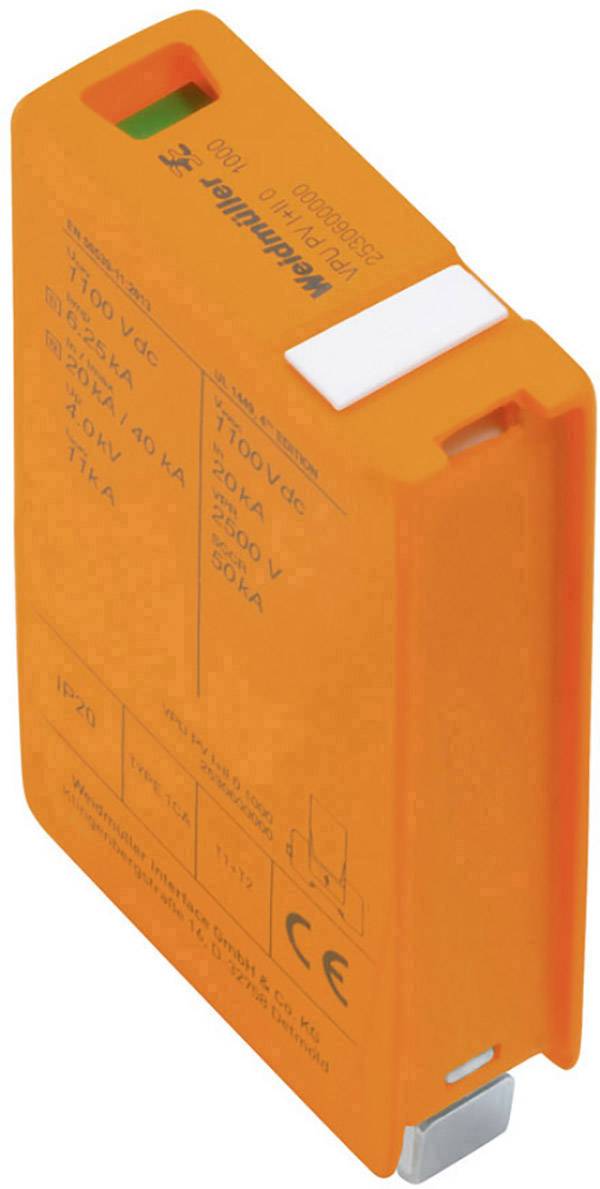

Weidmüller 2530530000 VPU PV I+II 0 1000 E Surge arrester (plug-in) 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Pluggable
- Short-circuit resistance ISCPV: 11,000 A.
- Storage temperature -40 °C to 85 °C.
- Net weight 72 g
- Optical function display: Green = OK, red = arrester defective, replace
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester (plug-in)
- Leakage current
20 kA
- Nominal voltage
1000 V
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
2530530000
- Type
Type I/II
- Factory colour
Orange
- Standards
EN 50539-11:2013 + A1:2014, UL 1449 Ed. 4
- Dim
(W x H x D) 18 x 45 x 63 mm
- Width
18 mm
- Height
45 mm
- Depth
63 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1915813 Weidmüller 2530530000 VPU PV I+II 0 1000 E Surge arrester (plug-in) 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1915813 Weidmüller 2530530000 VPU PV I+II 0 1000 E Surge arrester (plug-in) 20 kA 1 pc(s)
Description
The varitector overvoltage protection of the series VPU PV I (type I) and II (Type II) protects VPU PV photovoltaic systems and their components effectively against interference injections by lightning and overvoltages, even well below the limits according to EN 60664-3 by the insulation coordination/DIN VDE 0110-3 specified. In this way, the infrastructure as well as converter systems from overvoltage protected and the plant availability is increased.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
This text is machine translated.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
This text is machine translated.
