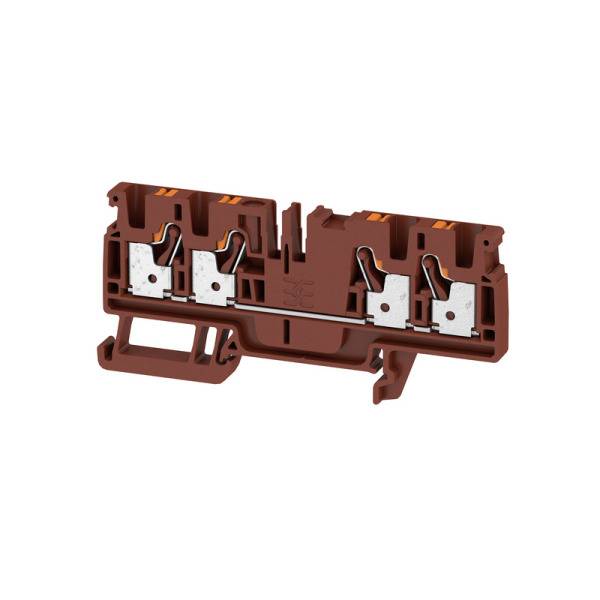

Image similar

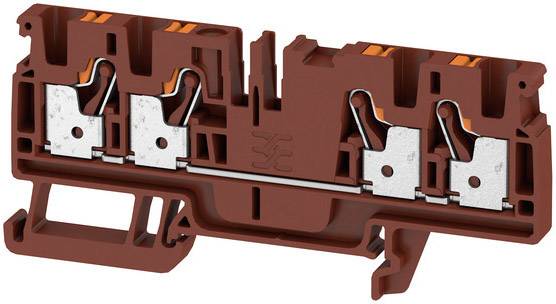

Image similar
Weidmüller 2534390000 Continuity 6.1 mm Pull spring Brown 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.58 / piece)
€ 78.98
plus VAT.
Highlights & Details
Feed-through terminal
- A4C 4 BR
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
6.1 mm
- Pins per row
4
- Number of pins
4
- Factory colour
Brown
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Stripping length (max.)
12 mm
- Manufacturer part #
2534390000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
A4C 4 BR
- Dim
(L x W x H) 39.5 x 6.1 x 87.5 mm
- Width
6.1 mm
- Height
87.5 mm
- Length
39.5 mm
- RoHS-compliant
Yes
- UKCA
not relevant
