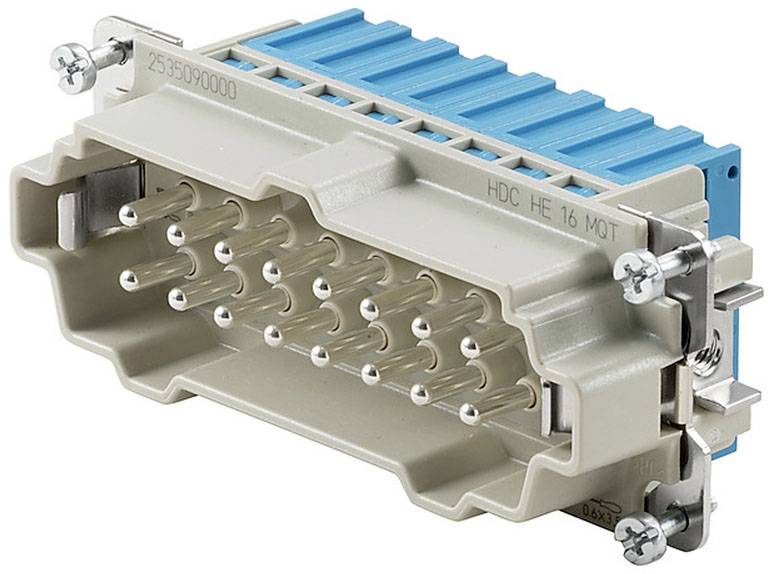

Weidmüller 2535090000 Pin inset 16 Snap-in 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Snap-in
Total no. of pins
16
Core cross section (max.)
2.5 mm²
Number of pins
16
Technical specifications
- Width: 34 mm
- Height: 36.9 mm
- Depth: 84.5 mm
- Temperature limit: -40 °C ... 125 °C
- Size: 6
- Series: He
- Rated voltage (DIN EN 61984): 500 V
- Flammability class according to UL 94: V-0
- Insulation material: PC Glass fiber reinforced (UL listed and railway qualified), PA 66/6
- Pollution degree: 3
- Connection type PE: Screw connection
- Forward resistance: ≤ 2MΩ
- Surface: Silver passivated
- Material: Copper
- stripping length Rated connection: 10 mm
- Blade dimension: SD 0.6 x 3.5
- conductor cross-section AWG, max.: 16
- conductor cross-section AWG, min. 20
- Product type
Pin inset
- Connection
Snap-in
- Total no. of pins
16
- Core cross section (max.)
2.5 mm²
- Number of pins
16
- Core cross section (min.)
1 mm²
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2243909 Weidmüller 2535090000 Pin inset 16 Snap-in 1 pc(s)
