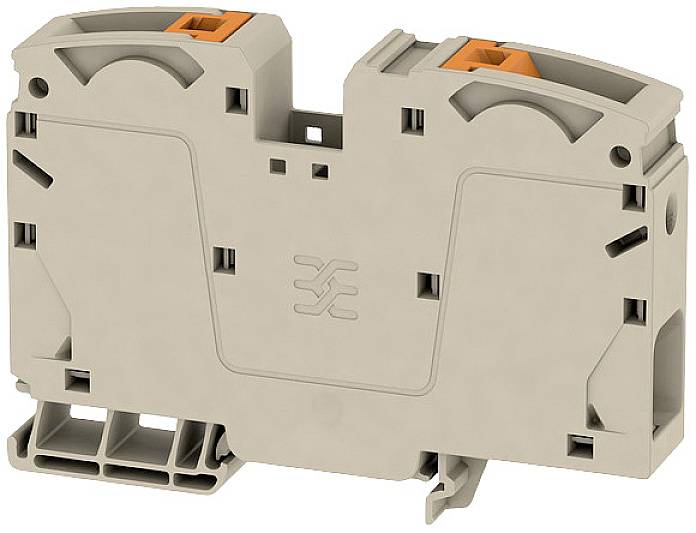

Weidmüller 2551510000 Serial continuity Jack connector Beige 10 pc(s)
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Jack connector
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
125 A
Highlights & Details
- A2C 35
Technical specifications
- Product type
Serial continuity
- Connection
Jack connector
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Beige
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
1000 V
- Manufacturer part #
2551510000
- Content
10 pc(s)
- Type
A2C 35
- Dim
(L x W) 101.5 mm x 16 mm
- Width
16 mm
- Length
101.5 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2537489 Weidmüller 2551510000 Serial continuity Jack connector Beige 10 pc(s)
