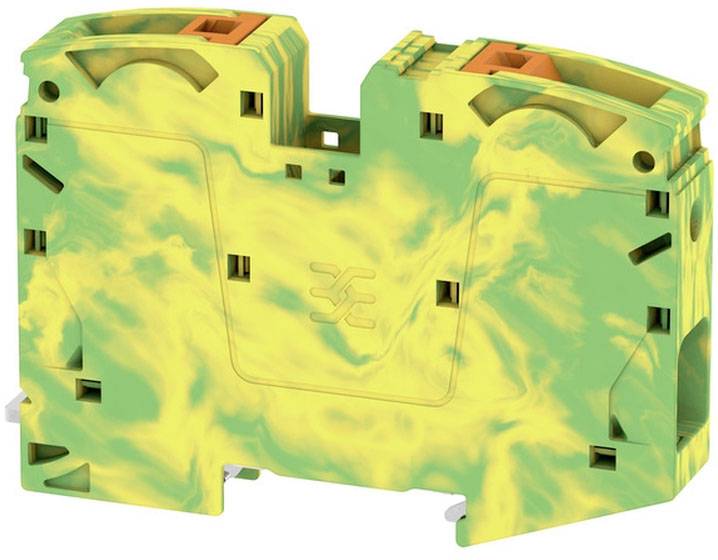

Weidmüller 2551520000 PG terminal 16 mm Push-in connector Green, Yellow 10 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Push-in connector
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
16 mm²
Content
10 pc(s)
Highlights & Details
- A2C 35 PE
Technical specifications
- Storage temperature: +10 °C - +40 °C
- Continuous usage temperature: -60 °C - +130 °C
- Rated cross-section: 35 mm²
- Rated voltage to neighboring terminal: 1000 V
- Forward resistance: 0.26 mΩ
- Power loss: 4 W
- Rated surge voltage: 8 kV
- Number of connections: 2
- clamping range, max.: 35 mm²
- Clamping range, min.: 2.5 mm²
- Mounting rail: TS 35
- Material: Wemid
- Mounting type: TS 35
- Overvoltage category: III
- Twin ferrule, max.: 10 mm²
- Twin ferrule, min.: 2.5 mm²
- Mounting type: TS 35
- operating temperature range: -50 °C - +130 °C.
- Product type
PG terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
12
- AWG max.
2
- Clamp width
16 mm
- Factory colour
Green
Yellow
- Nominal voltage
1000 V
- Stripping length (max.)
25 mm
- Manufacturer part #
2551520000
- Content
10 pc(s)
- Type
A2C 35 PE
- Dim
(L x W x H) 71.5 x 16 x 101 mm
- Width
16 mm
- Height
101 mm
- Length
71.5 mm
- Weight
109.905 g
- Flammability rating
V0
- Connector colour
Orange
- Insulation material
Thermoplastic
- UKCA
not relevant
