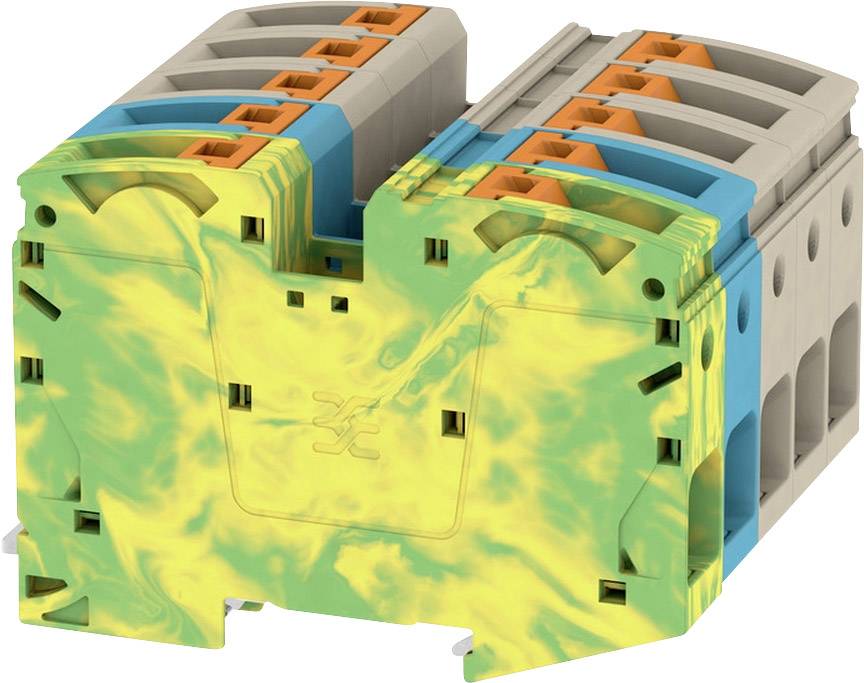

Weidmüller 2551540000 Serial continuity 80 mm Push-in connector Beige, Blue, Green, Yellow 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Push-in connector
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
16 mm²
Technical specifications
- Storage temperature: +10 °C - +40 °C
- Continuous usage temperature: -60 °C - +130 °C
- Rated cross section: 35 mm²
- Current at max. conductor: 125 A
- Forward resistance: 0.26 mΩ
- Power loss: 4 W
- Rated surge voltage: 8 kV
- Number of connections: 10
- clamping range, max.: 35 mm²
- Clamping range, min.: 2.5 mm²
- PE connection: Yes
- Mounting rail: TS 35
- N function: Yes
- PE function: Yes
- PEN function: No
- Material: Wemid
- Mounting type: TS 35
- Overvoltage category: III
- Twin ferrule, max.: 10 mm²
- Twin ferrule, min.: 2.5 mm²
- Mounting type: TS 35
- latching: Yes
- Application temperature range: -50 °C - +130 °C
- Rated voltage AC: 1000 V
- Rated voltage DC: 1500 V.
- Packaging type
Piece
- Product type
Serial continuity
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
12
- AWG max.
2
- Clamp width
80 mm
- Factory colour
Beige
Blue
Green
Yellow
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
1000 V AC
- Stripping length (max.)
25 mm
- Manufacturer part #
2551540000
- Content
1 pc(s)
- Type
A2C 35 3FT-N-PE
- Dim
(L x W x H) 71.5 x 80 x 101.5 mm
- Width
80 mm
- Height
101.5 mm
- Length
71.5 mm
- Rated surge voltage
8 kV
- Weight
428.68 g
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
yes
